- PICO One set is perfect for you if you want to monitor 1 main battery or battery bank, 1 additional starter or auxiliary battery, and up to 2 tanks or temperatures.

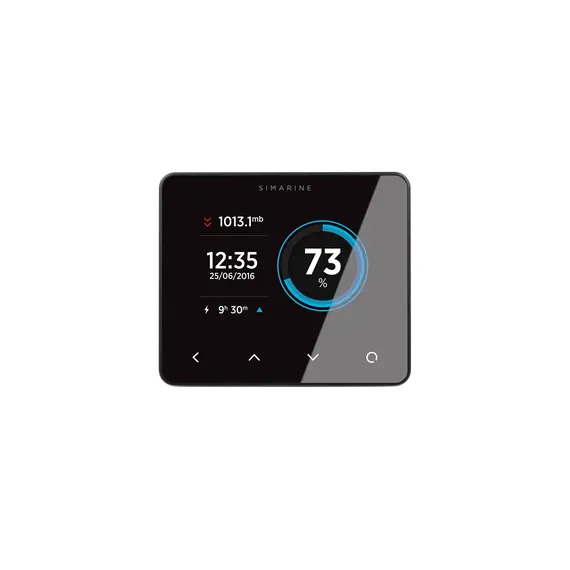

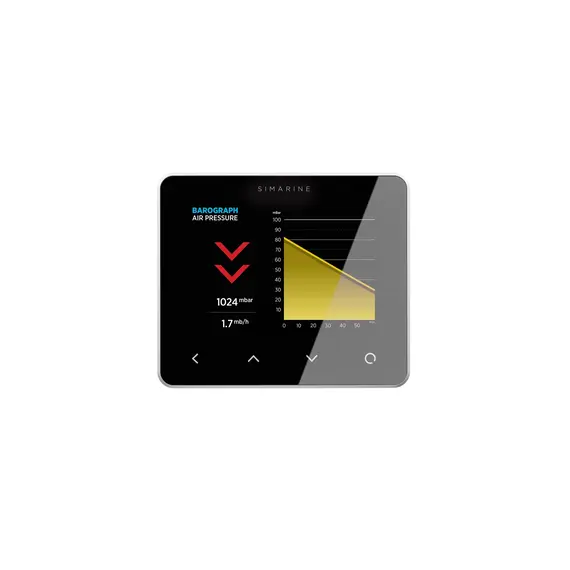

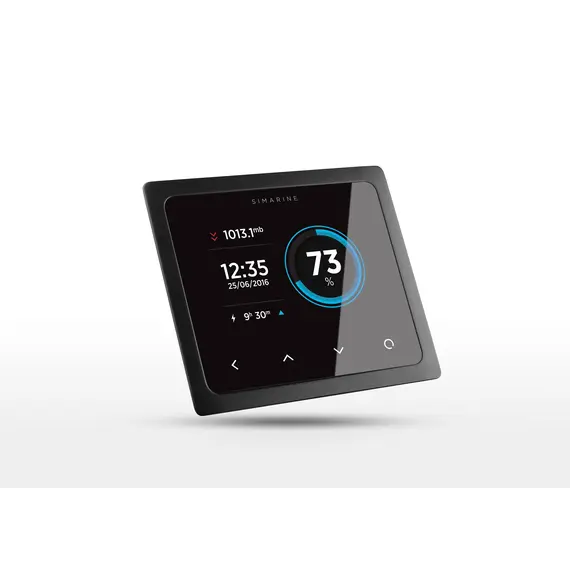

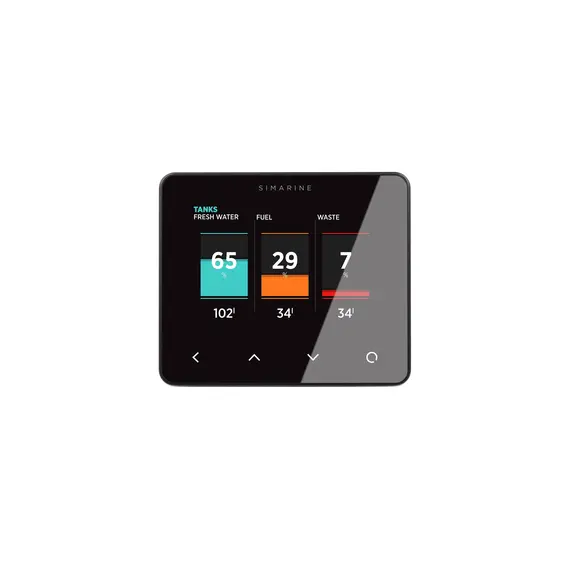

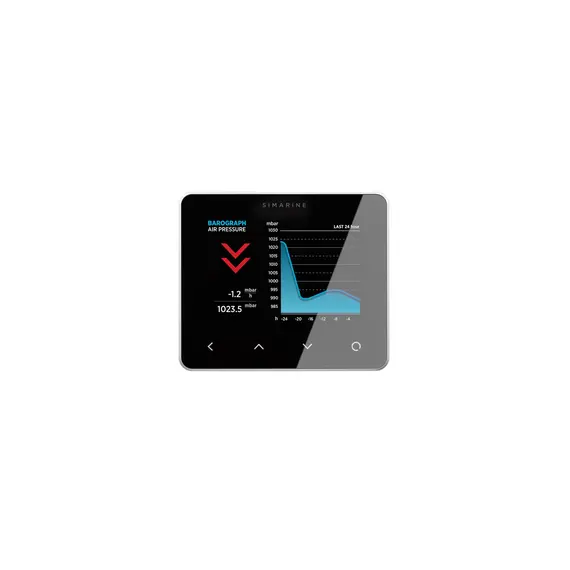

It features two main devices. PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.

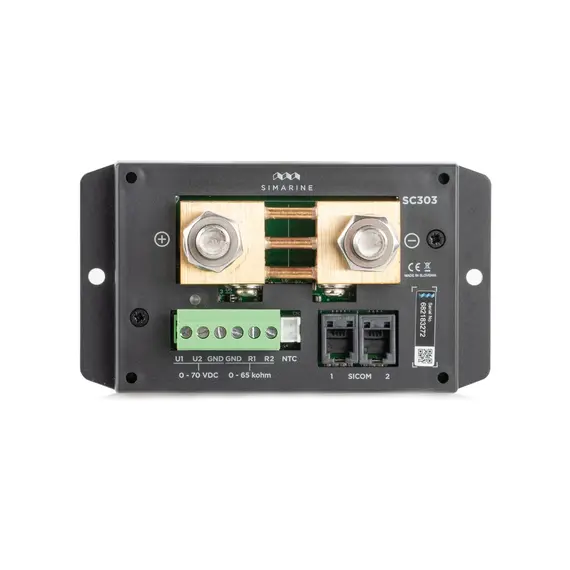

- The SC303 shunt, which is included in this set, allows for a continuous current up to 300 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.
Technical specifications:
| Operating voltage | 6 - 35 V DC |
| Temperature range | -10 to +70°C |
| Power consumption WiFi on, 100% lighting | 90 mA |
| Power consumption WiFi off, 70% lighting | 35mA |
| Power consumption WiFi off, 0% lighting | 18mA |
| Dimensions stand-alone (without connections) | 98 x 84 x 10 mm |
| Dimensions of built-in installation (without connections) | 108.5 x 94 x 20 mm |
The PICO sets in comparison:
| PICO one set | PICO standard set | PICO Blue Set | |
| Battery banks | 1x up to 300A | 1x up to 300A | 1x up to 500A |
| Battery voltage monitoring | 2x | 4x | 4x |
| Tanks | up to 2 tanks | up to 4 tanks | up to 7 tanks |
| Temperatures | up to 2 temperatures | up to 4 temperatures | up to 4 temperatures |
| Barograph | ✔ | ✔ | ✔ |
| Smartphone App / Wi-Fi | ✔ | ✔ | ✔ |
| Consumption / charging current monitoring via four 25 A measuring shunts | ✘ | ✘ | ✔ |
| Casing | aluminum | aluminum | aluminum |
| Anti-reflection Gorilla® glass | ✔ | ✔ | ✔ |
| Waterproof and dus tproof | ✔ | ✔ | ✔ |
| 4 water-resistant CapSense® buttons | ✔ | ✔ | ✔ |
| Expandable with other modules | ✘ | ✔ | ✔ |
With a free Android and iOS app, you can connect your PICO to your smartphone via Wifi. This allows you to conveniently monitor the battery from your smartphone and change the settings of your PICO.
Note
- When the shunt is mounted in the battery's NEGATIVE line, the state of charge (SOC) of a 12, 24, 36, 48, 60, or 72 volt battery system can be monitored. ONLY with 12 or 24 volt battery systems, the shunt can also be mounted in the battery's POSITIVE line.
- In addition to other measuring modules, up to 6 shunts can be connected to the PICO Standard or PICO Blue, which can independently detect the state of charge (SOC) of different battery systems, e.g. of a 12 volt and a 24 volt battery bank.
