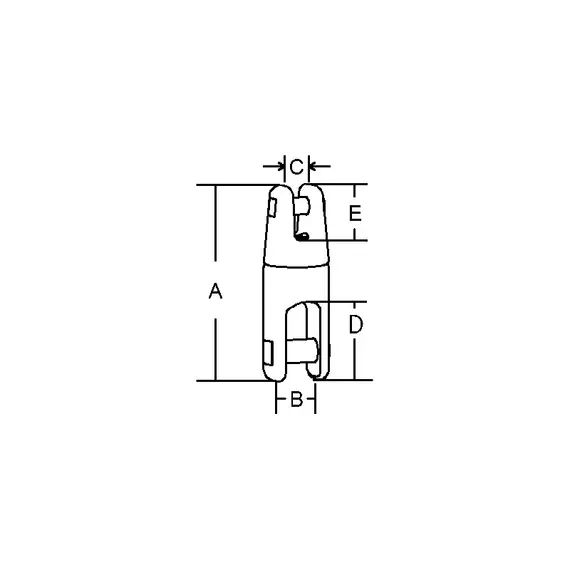

A, mm
84
B, mm
16
Breaking load, kg
850
C, mm
9
Chain Ø, mm
6-8
D, mm
20
E, mm
25
Brand
Marine Town
MPN
NDH-AC-09-S
EAN
8052282021992

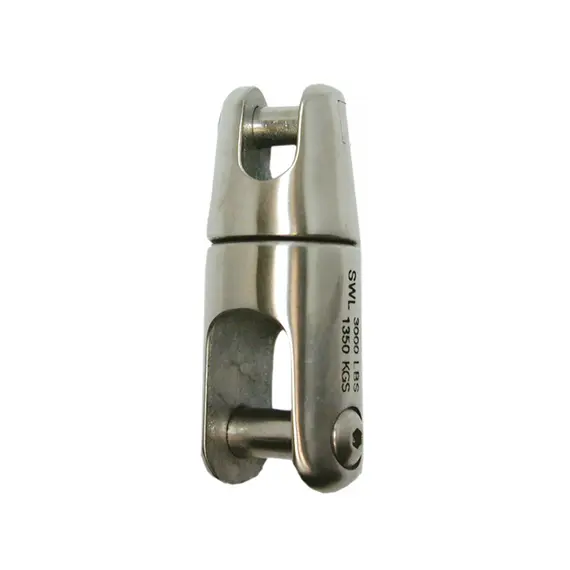

Crafted with AISI 316 stainless steel, these chain-anchor connectors have an oval shape that facilitates seamless sliding of the chain and anchor on the bow. These connectors are of the swivelling model type.
Using these swivelling connectors provides numerous benefits, including the ease with which you can pull the anchor over the bow roller. The captured pins ensure that they remain securely in place, even when under load, and can be removed using an Allen wrench. However, it is crucial to apply Loctite on screws after installation to maintain a secure fit of the connectors.
