AC-connection
Bolts M6
Battery-connection
Four M8 bolts
Charge voltage ‘absorption’,V (DC)
57,6
Charge voltage ‘float’,V (DC)
55,2
Charging Current, A
110
Depth, mm
206
Device type
Charger + Inverter
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
187 - 265
Input voltage, V (DC)
38-66
Protection
a-g
Protection category, IP
IP22
Width, mm
363
Brand
Victron Energy
MPN
PMP482805000
Weight, kg
42
EAN
8719076050568
Operating temperature
-40 to +65ºC
Main characteristics
Height, mm
642

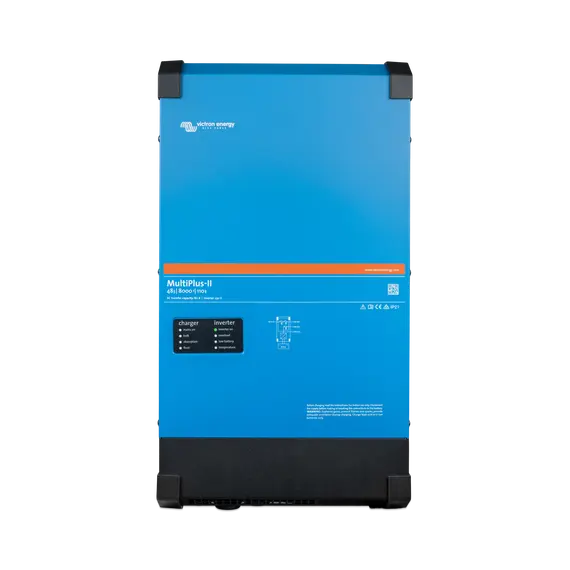

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
