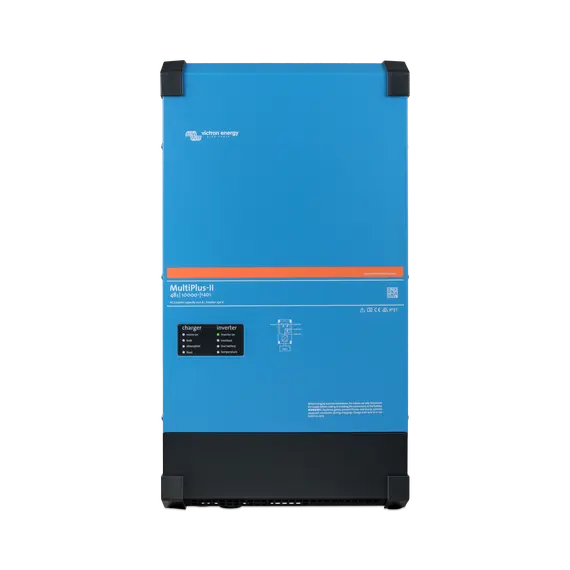

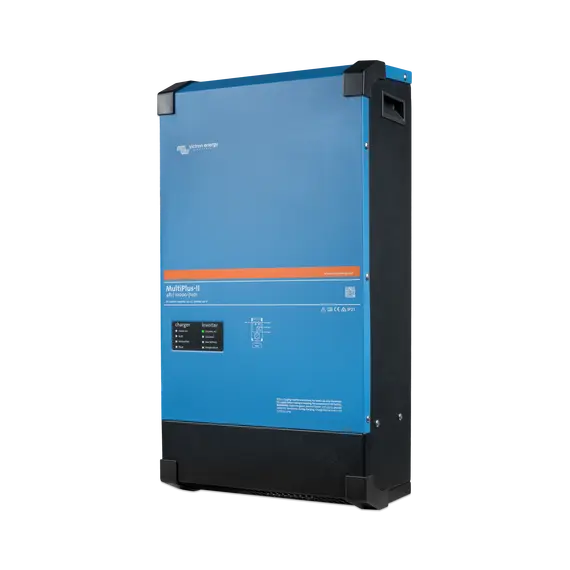

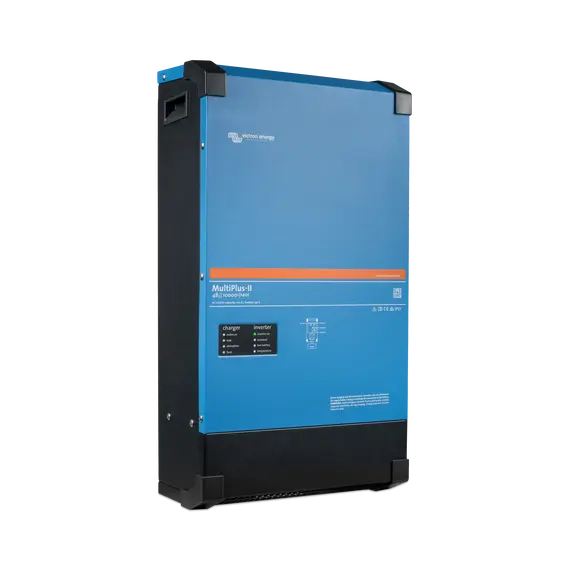

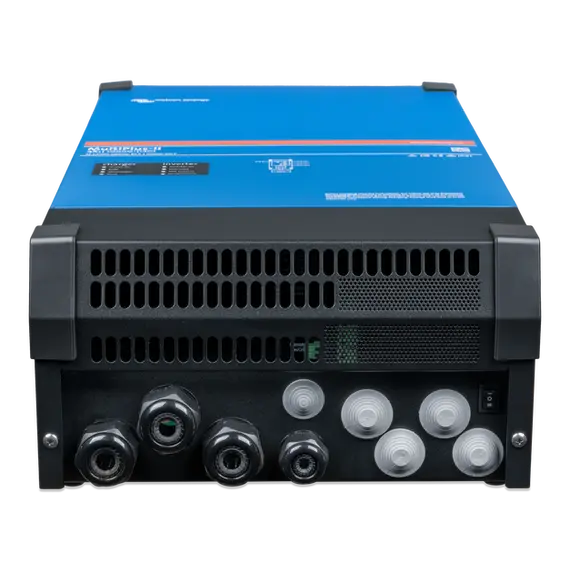

Phoenix MultiPlus-II 48/10000/140-100 Inverter/Charger
21875M
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
Taxes
The price provided is NET-price, meaning shipment and VAT are not included. Payments of additional duties and taxes might be required. Cost of taxes and delivery calculating after goods ordering and indicate type of client and delivery address.
Returns
Delivery
BrandVictron Energy
Shipping fromCroatia
Features of Phoenix MultiPlus-II 48/10000/140-100 Inverter/Charger

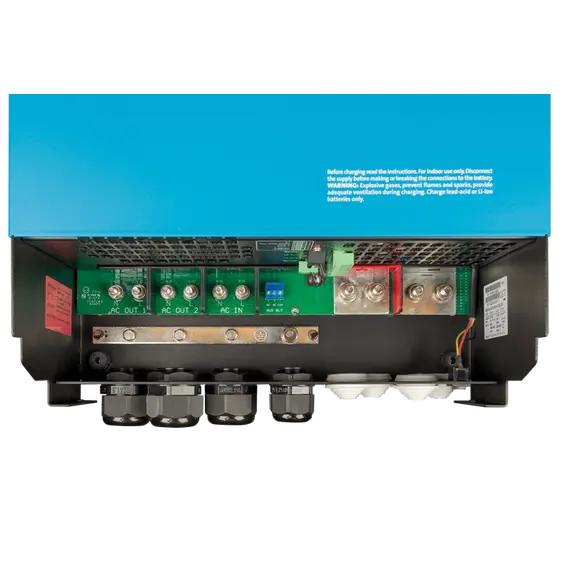

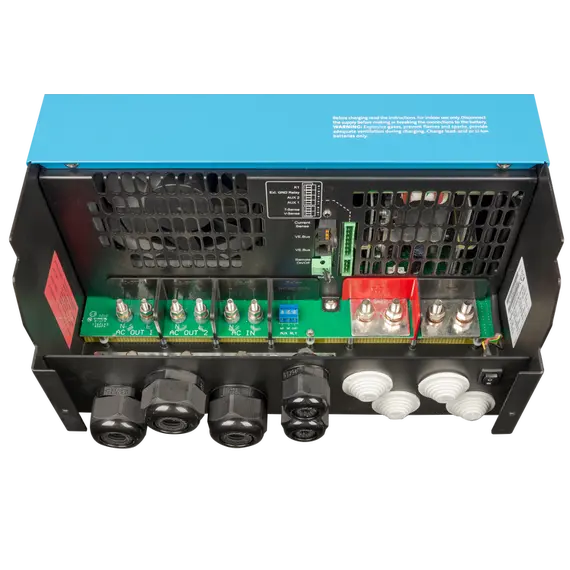

AC-connection
Bolts M6
Battery-connection
Four M8 bolts
Brand
Victron Energy
Charge voltage ‘absorption’,V (DC)
57,6
Charge voltage ‘float’,V (DC)
55,2
Charging Current, A
140
Depth, mm
206
Device type
Charger + Inverter
Frequency, Hz
45-65
Height, mm
677
Humidity (non condensing)
max 95%
Input voltage, V (AC)
187-265
Input voltage, V (DC)
38-66
Manufacture number
PMP483105000
Protection
a-g
Protection category
IP 22
Width, mm
363
Weight, kg
49
EAN
8719076044956
Operating temperature
-40 to +65ºC
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this product was called MultiGrid-II.
