AC-connection
Screw-terminal 6 AWG (13mm²)
Battery-connection
M8 bolts
Charge voltage ‘absorption’,V (DC)
28,8
Charge voltage ‘float’,V (DC)
27,6
Charging Current, A
70
Depth, mm
218
Device type
Charger + Inverter
Frequency, Hz
60
Humidity (non condensing)
max 95%
Input voltage, V (AC)
95-140
Input voltage, V (DC)
19 - 33
Protection
a-g
Protection category, IP
IP 21
Width, mm
258
Brand
Victron Energy
MPN
PMP242300001
Weight, kg
19
EAN
8719076045168
Operating temperature
-45 to +65ºC
Main characteristics
Height, mm
362

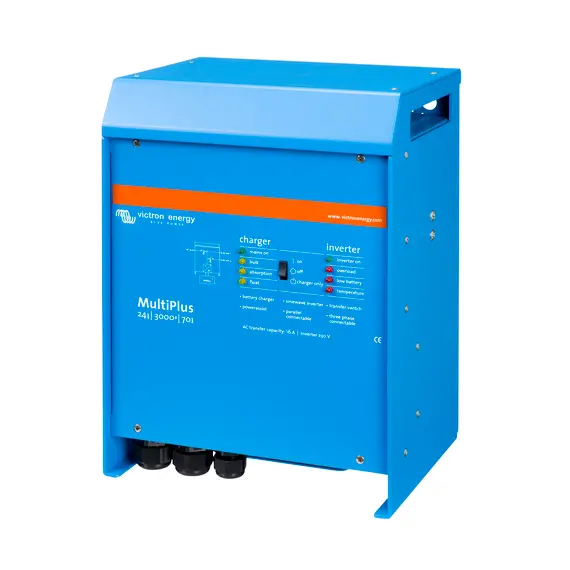

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
