AC-connection
G-ST18i connector
Battery-connection
35 mm²
Charge voltage ‘absorption’,V (DC)
14,4
Charge voltage ‘float’,V (DC)
13,8
Depth, mm
100
Device type
Charger + Inverter
Frequency, Hz
50
Humidity (non condensing)
max 95%
Input voltage, V (AC)
187 - 265
Protection
a-g
Protection category, IP
IP 21
Width, mm
250
Brand
Victron Energy
MPN
PMP122120000
Weight, kg
8.2
EAN
8719076039310
Operating temperature
-40 to +65ºC
Main characteristics
Height, mm
406

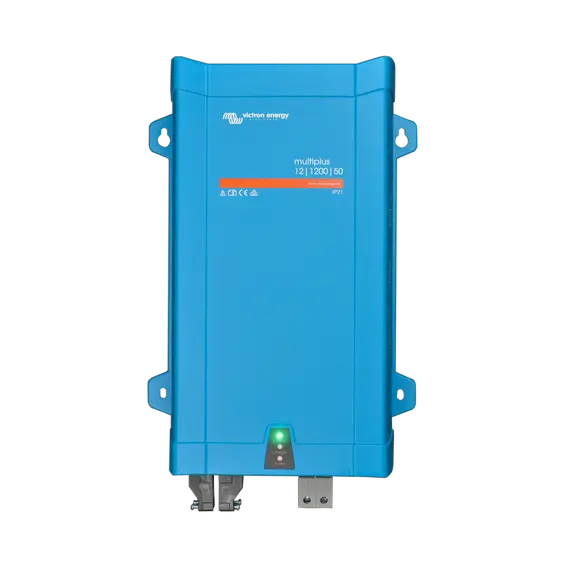

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
