AC-connection
Spring-clamp
Battery-connection
M8 bolts
Depth, mm
125
Device type
Inverter
Frequency, Hz
50
Humidity (non condensing)
max 95%
Input voltage, V (DC)
9,5 – 17V 19 – 33V 38 – 66V
Protection
a-g
Protection category, IP
IP 21
Width, mm
255
Brand
Victron Energy
MPN
CIN122200000
Weight, kg
12
EAN
8719076037514
Operating temperature
-40 to +65ºC
Main characteristics
Height, mm
520

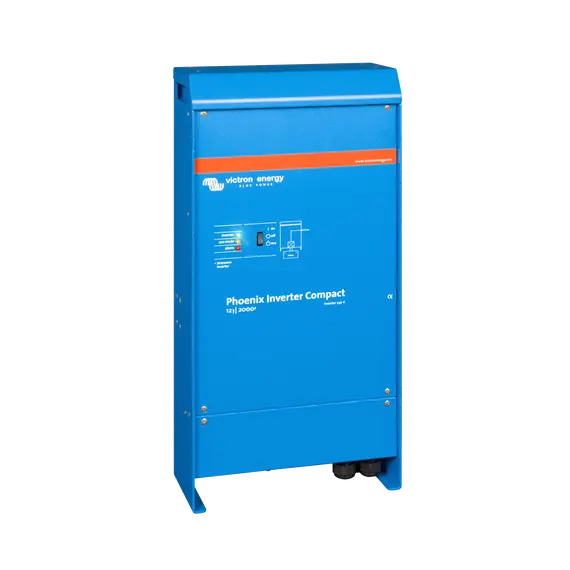

The Phoenix Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
The Phoenix Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
