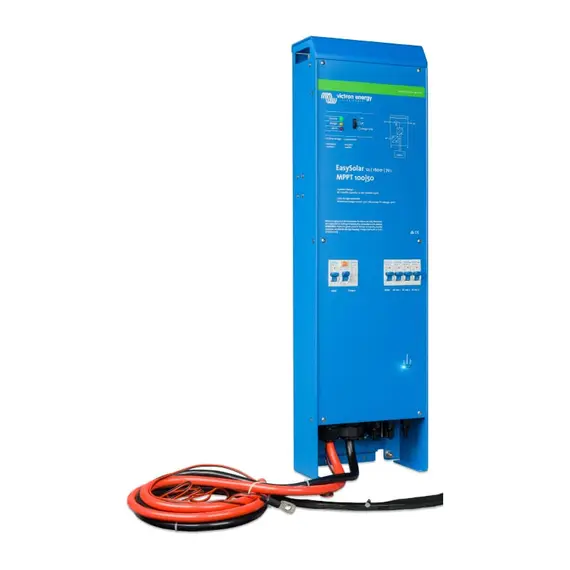

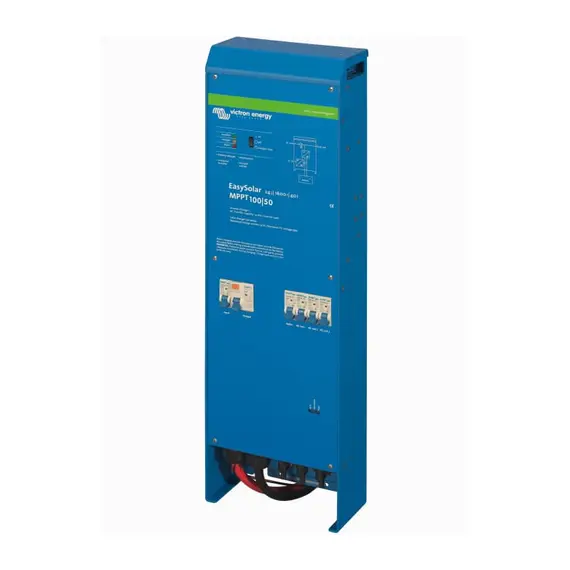

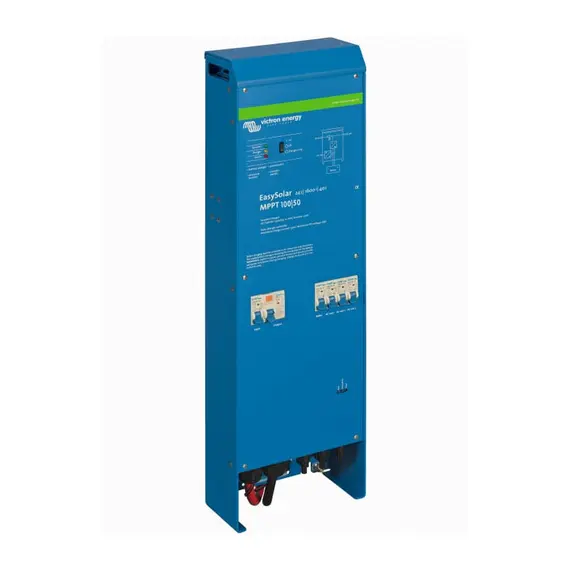

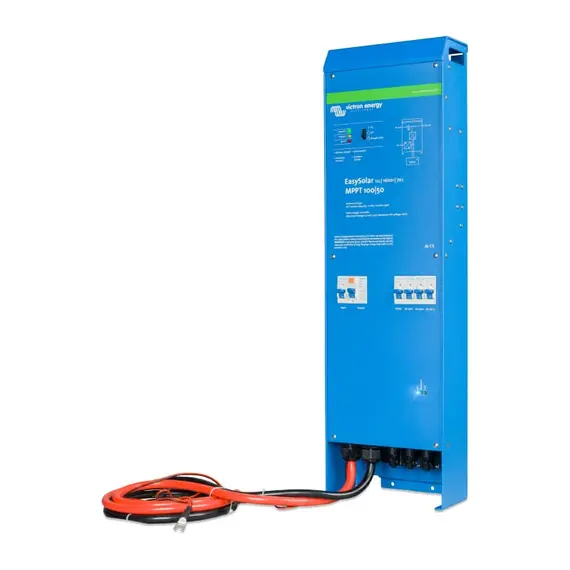

The EasySolar offers an all-in-one solar power solution, seamlessly integrating an MPPT solar charge controller, an inverter/charger, and AC distribution within a single enclosure. Installation is simplified with minimal wiring requirements.

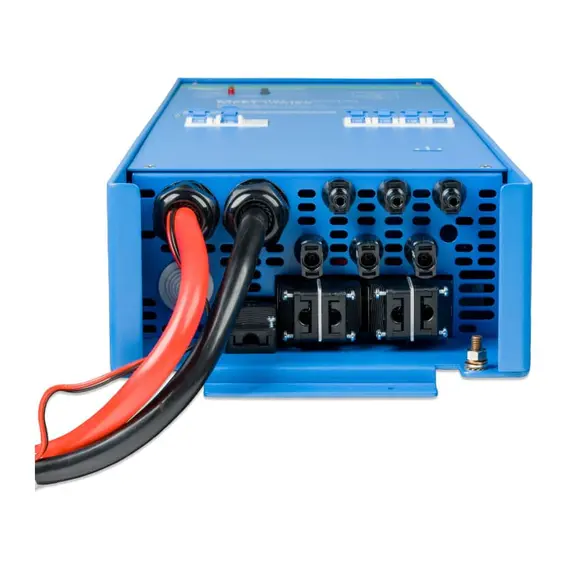

The Blue Solar MPPT 100/50 solar charge controller accommodates up to three strings of PV panels through MC4 PV connectors. The MPPT charge controller and the MultiPlus Compact inverter/charger share DC battery cables, enabling charging from solar power (SmartSolar MPPT) and/or AC power (inverter/charger) sourced from the utility grid or a genset.
AC distribution features a 30 mA/16 A RCD and four AC outputs, protected by two 10A and two 16A circuit breakers. One 16A output is AC input-controlled, activating only when AC is available.
The unique PowerAssist technology acts as a safeguard, preventing overload on the utility or generator supply by providing additional inverter power when necessary.
