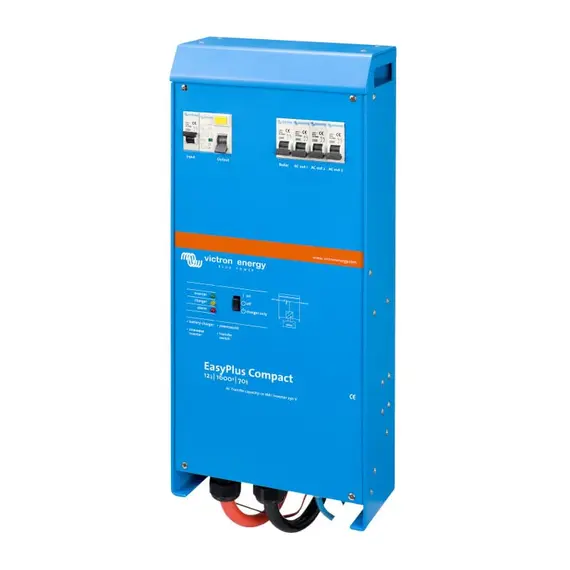

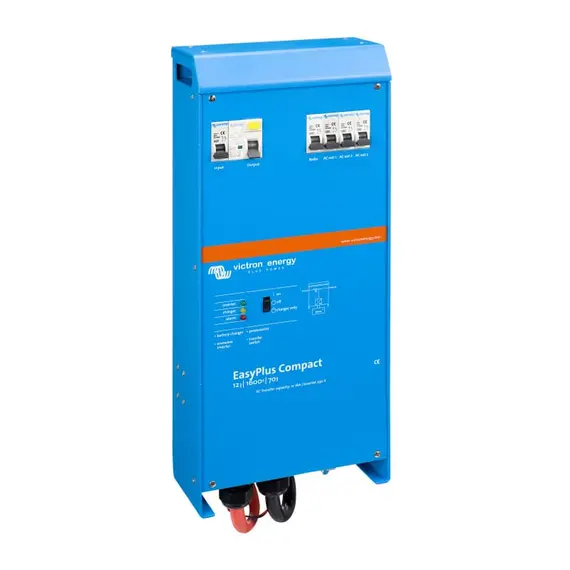

EasyPlus C 12/1600/70-16

CEP121620000
968.40
1,076.00
You save: 107.60 €
In stock

All-in-one design integrates inverter, charger, transfer switch seamlessly

PowerAssist® technology optimizes total capacity, drawing from batteries

Flexible power distribution prevents overload and ensures uninterrupted supply

Uflex s.r.l.
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandVictron Energy Shipping fromCroatia
AC-connection
G-ST18i connector
Battery-connection
Battery cables of 1.5 meter
Charge voltage ‘absorption’,V (DC)
14.4
Charge voltage ‘float’,V (DC)
13.8
Charging Current, A
70
Depth, mm
110
Device type
Charger + Inverter
Frequency, Hz
50 Hz ± 0,1 %
Humidity (non condensing)
max 95 %
Input voltage, V (AC)
187 - 265
Input voltage, V (DC)
9.5 - 17
Integrated fan
Yes
Protection
Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high
Protection category, IP
IP21
Temperature sensor
Yes
Width, mm
214
Brand
Victron Energy
MPN
CEP121620000
Weight, kg
11.7
EAN
8719076021582
Operating temperature
-20 to +50 °C (fan assisted cooling)
Main characteristics
Height, mm
510
Find similar

The EasyPlus is a versatile energy system integrating a powerful sine wave inverter, advanced battery charger, high-speed AC transfer switch, and AC distribution within a single lightweight and compact enclosure. Designed for user convenience, it provides a complete energy solution without the complexities of separate installations.

This multi-functional power solution ensures uninterrupted power supply wherever you are, utilizing PowerAssist® technology to enhance total capacity by drawing additional energy from the batteries when shore or generator power is limited. Integrated safety features include an RCD (Residual Current Device) for earth leakage protection.

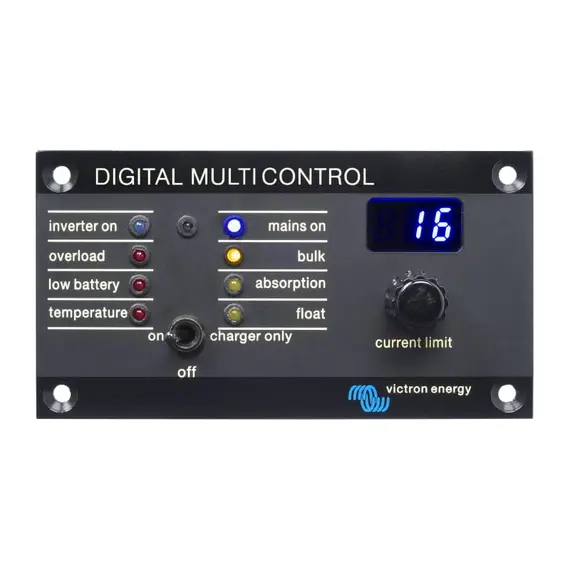

Connected to batteries, shore power, or a generator, the EasyPlus allows the adjustment of the maximum available generator or shore current via the control panel. Power consumers are categorized into two groups, with the first group, including regular low or short-term power users, fed from both shore/generator and battery power through the inverter. The second group, comprising heavy users like water heaters or air-conditioning, is shore/generator-only to prevent excessive battery discharge.

The innovative PowerAssist® technology safeguards against overloading the shore or generator by supplementing extra inverter power when needed.

Additional materials

Brochure (Brochure-EasyPlus-EN.pdf, 2,804 Kb) [Download]

User Manual (Manual-EasyPlus-1600-EN-NL-FR-DE-ES.pdf, 1,406 Kb) [Download]
