Windlass X2 Aluminum - 1500w - 12v - Chain 8mm - Low Profile

1,210.46
In stock

Suitable for boats from 10 to 13 meters

Comes with a control box and handle for ease of use

Made of specific compound of aluminum, polished until it has a sleek surface, and subjected to an anodization treatment

FNI
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLofrans Shipping fromCroatia

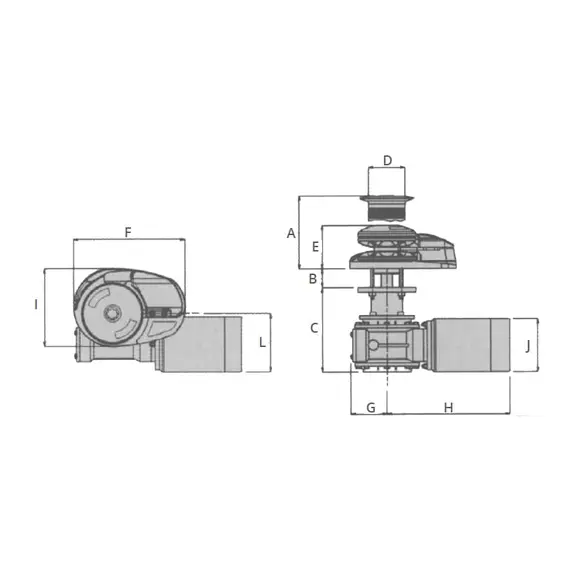

A, mm
153
B, mm
25-40
Boat size, m
10-13
C, mm
155
Chain Ø, mm
8
D, mm
76
Drum
No
E, mm
95
F, mm
232
G, mm
73
H, mm
260
I, mm
162
J, mm
134
L, mm
165
Max chain speed mt/min
17/40
Max working load, kg
165
Watt
1500
Brand
Lofrans
Rope Ø, mm
14
Voltage, V DC
12
Weight, kg
24
EAN
5204986010533
Find similar

Lofrans' X2 vertical windlass is appropriate for both sail and motor boats ranging from 10 to 13 meters in length. Each windlass in the X series comes with standard features, including a waterproof steel ball bearing at the base that ensures optimal functionality and requires no maintenance. It sets it apart as a distinctive characteristic in the windlass industry.

The clutch is constructed with two conical discs connected to the main shaft by two parallel planes, eliminating the need for keys and allowing for proper weight distribution. A special coupling connects the electric motor and gearbox and features a socket for simplified maintenance. Finally, a sensor in the base and a magnet in the gypsy enable the windlass to be linked to a chain counter.

Primary characteristics of the model:

- Base and drum of the windlass are made of anodized marine aluminum that exudes luxury
- Model is available with either a drum or a low-profile design
- The gypsy and drum can be operated independently of each other
- Has a gypsy that accommodates both rope and chain combinations
- The manual chain release feature allows the user to release the chain quickly
- The spring-loaded arm makes rope chain management effortless
- The chain counter magnet comes pre-installed with an IP67 heavy-duty electric motor
- Its gearbox is made of anodized aluminum alloy for durability in marine environments

Additional materials

Technical Manual (Installation_And_User's_Manual___X2_-_X2_Alu_-_Project_1000.pdf, 3,510 Kb) [Download]
