0303242

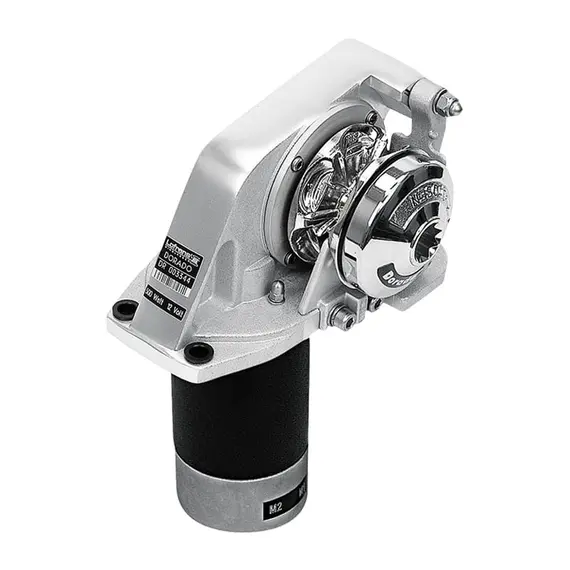

Windlass Dorado - 500w - 12v - Chain 6mm

702.83
In stock

Made from anodized marine-grade aluminum, which is durable and long-lasting, making it suitable for heavy-duty use on boats

Comes with a high-torque electric motor that is designed to operate efficiently under all working conditions

Includes a manual override for chain recovery in case of electrical failures, which also serves as a safety mechanism to prevent chain jams from damaging the deck

FNI
+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLofrans Shipping fromCroatia
A, mm
130
B, mm
200
Boat size, m
5-8
C, mm
152
Chain Ø, mm
6
D, mm
80
Drum
No
E, mm
48
F, mm
98
G, mm
53
Max chain speed mt/min
24
Rope Ø, mm
12
Watt
500
Brand
Lofrans
MPN
409568
Voltage, V DC
12
Weight, kg
7
Find similar

A horizontal windlass is apt for boats ranging from 7.5 to 8 meters, offering optimal performance and functionality when there's sufficient deck space, or if chain lockers are small or difficult to access. It's easy to operate, reliable, and has a classic, timeless style, making it suitable for various vessels, including those in the charter business.

Constructed with marine-grade aluminum alloy, the windlass has a polished and anodized body. Most components are created through hot forging.

The electric motor is designed to deliver high torque under all working conditions. With an IP66 rating, the motor features a galvanized body coated with polyester paint. It is engineered to provide the necessary power for long periods and operate at high speeds to minimize operation time.

A high-efficiency worm screw gearbox made by Lofrans is utilized. This non-reversible gearbox is made from materials capable of withstanding high-load strain. To reduce working noise, the gearbox is lubricated with oil.

The windlass includes a manual override for chain recovery in case of electrical failures. This feature also serves as a safety mechanism to prevent chain jams from damaging the deck.

Users have the option to use the drum for warping operations independently of the gypsy with this model.

The DORADO model can handle both rope and chain using a unique spring-loaded tension arm, known as a finger. The finger pushes the rope deep into the gypsy teeth for secure handling.

The main model benefits:

- Crafted from anodized marine-grade aluminum, the body is built to last.
- Utilize a designated mechanism to release the chain manually, as the operator desires.
- A spring-loaded arm adeptly manages the rope chain.
- Designed for heavy-duty use, the electric motor boasts an IP66 rating, ensuring protection from water and dust.
- Upon request, an automatic free-fall option can be installed for added convenience.
- Included in the package is a control box, facilitating the easy operation of the equipment.
