0303201

Windlass X1 - 800w - 12v - Chain 6mm - Low Profile

839.50
In stock

Suitable for boats from 6 to 9 meters

Comes with a control box and handle for ease of use

Made of bronze that has been completely coated in chrome, which makes it able to resist damage from saltwater

FNI
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLofrans Shipping fromCroatia
Boat size, m
6-9
Chain Ø, mm
6
Drum
No
Max chain speed mt/min
25/28
Max working load, kg
100
Watt
800
Brand
Lofrans
MPN
473217
Rope Ø, mm
12
Voltage, V DC
12
Weight, kg
13
EAN
3162424732176
Find similar

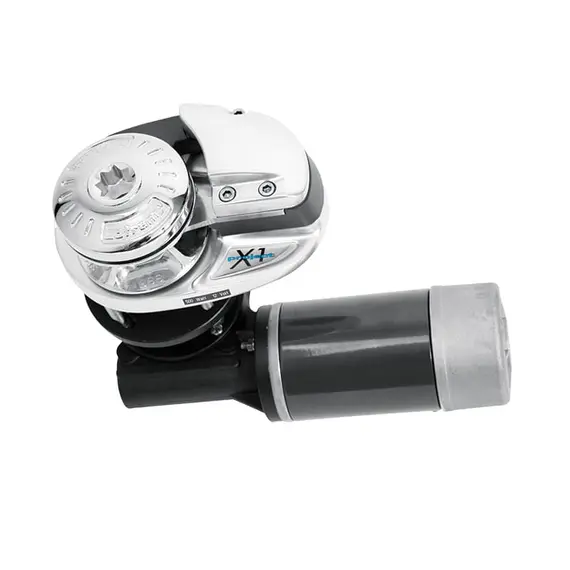

Lofrans' X1 vertical windlass is appropriate for both sail and motor boats ranging from 6 to 9 meters in length. Each windlass in the X series comes with standard features, including a waterproof steel ball bearing at the base that ensures optimal functionality and requires no maintenance. It sets it apart as a distinctive characteristic in the windlass industry. Low profile version only has a gipsy.

The clutch is constructed with two conical discs connected to the main shaft by two parallel planes, eliminating the need for keys and allowing for proper weight distribution. A special coupling connects the electric motor and gearbox and features a socket for simplified maintenance. Finally, a sensor in the base and a magnet in the gypsy enable the windlass to be linked to a chain counter.

Primary characteristics of the model:

- Base of the windlass is made of high-end chrome bronze material that exudes luxury
- Model is available with a low-profile design
- Has a gypsy that accommodates both rope and chain combinations
- The manual chain release feature allows the user to release the chain quickly
- The spring-loaded arm makes rope chain management effortless
- The chain counter magnet comes pre-installed with an IP67 heavy-duty electric motor
- Its gearbox is made of anodized aluminum alloy for durability in marine environments

Additional materials

Technical Manual (Installation_And_User's_Manual___X1___X1_ALU.pdf, 2,078 Kb) [Download]
