0303152

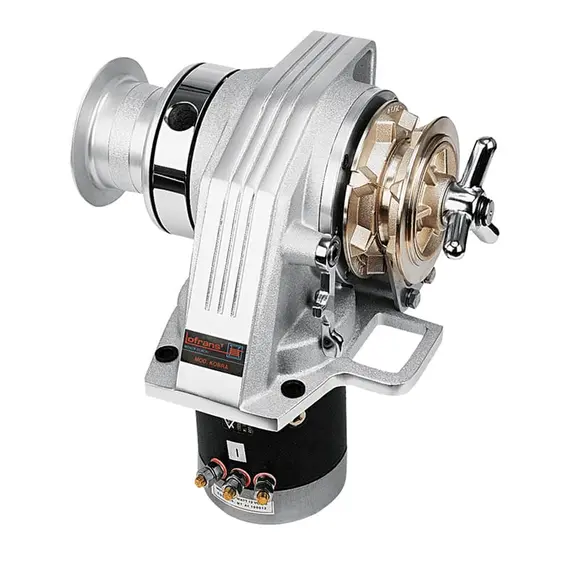

Windlass Kobra - 1000w - 12v - Chain 6mm

1,269.00
In stock

Constructed with marine-grade aluminum alloy, which provides durability and longevity, making it ideal for heavy-duty use on boats

Comes with a high-torque electric motor designed to deliver power under all working conditions

Can be equipped with an optional Automatic Free Fall device

FNI
+
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLofrans Shipping fromCroatia
A, mm
184
B, mm
250
Boat size, m
10-13
C, mm
136
Chain Ø, mm
6
D, mm
114
Drum
Yes
E, mm
83
F, mm
147
G, mm
172
H, mm
85
Max chain speed mt/min
32
Watt
1000
Brand
Lofrans
MPN
600051
Voltage, V DC
12
Weight, kg
16
EAN
5204986000510
Find similar

A horizontal windlass is apt for boats ranging from 10 to 13 meters, offering optimal performance and functionality when there's sufficient deck space, or if chain lockers are small or difficult to access. It's easy to operate, reliable, and has a classic, timeless style, making it suitable for various vessels, including those in the charter business.

Constructed with marine-grade aluminum alloy, the windlass has a polished and anodized body. Most components are created through hot forging.

The electric motor is designed to deliver high torque under all working conditions. With an IP66 rating, the motor features a galvanized body coated with polyester paint. It is engineered to provide the necessary power for long periods and operate at high speeds to minimize operation time.

A high-efficiency worm screw gearbox made by Lofrans is utilized. This non-reversible gearbox is made from materials capable of withstanding high-load strain. To reduce working noise, the gearbox is lubricated with oil.

The windlass includes a manual override for chain recovery in case of electrical failures. This feature also serves as a safety mechanism to prevent chain jams from damaging the deck.

Users have the option to use the drum for warping operations independently of the gypsy with this model.

The KOBRA model can be optionally equipped with an AUTOMATIC FREE FALL device. By pressing the "Down" button on the remote control unit, this device disengages the clutch automatically, allowing the gypsy to rotate freely and release the anchor chain into the water due to the anchor's weight.

The main model benefits:

- Sporting a marine-grade anodized aluminum body, this model is highly durable.
- Both Gypsy and drum have the capability to operate independently.
- A dedicated mechanism is available for the operator to manually release the chain.
- In emergencies, the system can be manually overridden by the operator.
- The electric motor, rated IP66, is built for heavy-duty use while providing protection from water and dust.
- An automatic free-fall option can be installed if desired.
