FIREKILL represents an automated fire suppression system employing a pressurized cylinder filled with the clean gas HFC227. The package encompasses a manual remote control and a thermosensitive bulb, which can be set at 93°C (or adjusted to 68°C upon request).
The system features a pressure switch for charge verification, closing potential openings, and shutting down engines, generators, forced ventilation, or other permanently installed equipment that could hinder the discharge of the extinguishing medium in the protected area.
In cases where the equipment is located inside the protected space or if the system activation is automatic, a visual indication of discharge outside the protected room is provided. The choice of visual indication depends on the customer's detection system specifications.
FIREKILL incorporates a versatile valve that can operate completely automatically without the need for an external power source. It can be equipped with a manual remote control pull cable or an optional electric actuator upon request. Additionally, a control panel complete with smoke or temperature detectors can be connected.
The unique valve of FIREKILL has two 3/8" outlet pipes and can accommodate a maximum of 4 nozzles. This allows for precise distribution of the extinguishing agent to the specific fire risk area. Assembly is easy and quick without the need for threading tubes. The system is suitable for protecting varnish mixers, garages, flammable liquids storage, and more.

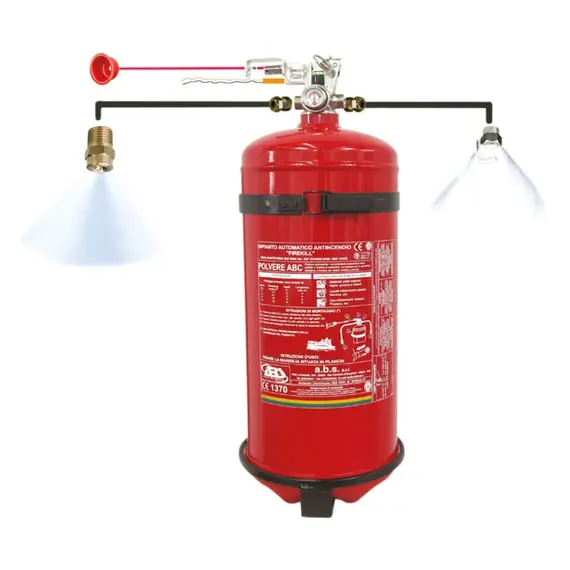

The package consists of a steel cylinder that is CE-approved, a rapid discharge valve constructed from chromed brass, and a pressure gauge. Additionally, it includes a thermosensitive bulb set at 93°C. It also includes the extinguishing agent, a pipe with fast connection couplings, discharge nozzles made of chromed brass, a remote control with a handle, a wall bracket, and an optional electric actuator for connection to an automatic control panel.
HFC227 is a clean gas used in total flooding systems. The volume specified in the table below is applicable to the engine room, and the compartment should not have any ventilation openings. HFC 227 agent, with a chemical composition of C3 HF7, is a "clean agent" that does not impact the atmosphere. It has an ODP value (Ozone Depletion Potential) of 0 and is used at concentrations lower than NOAEL.
