A, mm
380
B, mm
360
C, mm
370
Capacity, L
20
D, mm
355
Input voltage, V (AC)
220
Max power, watt
1200
Pressure, bar
5
Brand
Quick S.p.A.
MPN
FLB020UT0800A00
Weight, kg
7
EAN
8057090047844

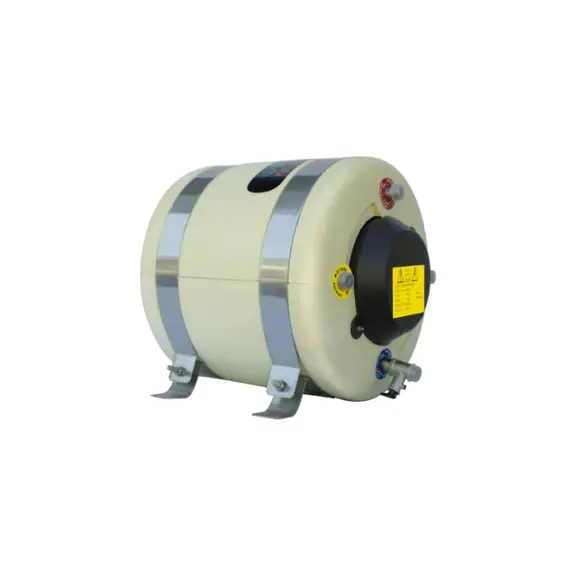

This boiler is constructed using top-quality materials specifically suited to the marine environment, providing exceptional strength and durability. The tank is made of AISI 316 stainless steel and is thermally insulated by a high-density polyurethane foam lining that is 20 mm thick. The boiler can be mounted with stainless steel brackets.
Some of its technical features include a heat exchanger made of AISI 316 stainless steel, an Incoloy electric heating element with 800/1200 W and 220 V, a regulating thermostat with double safety, a safety and non-return valve (6 bar ± 1), and engine and water fittings of 1/2 gas. The boiler has a universal mount for vertical and horizontal installation.
