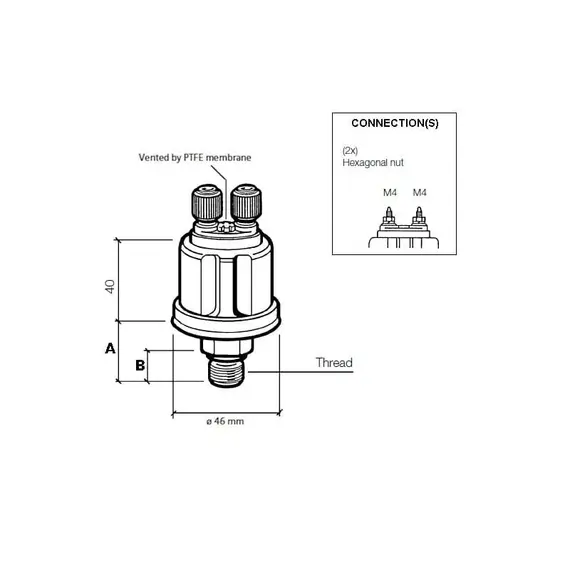

A, mm
19.5
B, mm
11
Max pressure, mbar
25
Thread
1/8" - 27 NPTF
Weight, g
120
Brand
VDO
MPN
360-081-038-003C
Voltage, V DC
6-24
Weight, kg
0,11
EAN
4103590691378
The transmission oil pressure sender is a device used to monitor and transmit information about the oil pressure in a vehicle's transmission system. It features connectors that are isolated from the body, specifically designed for eyelet terminals. These connectors ensure a secure and reliable electrical connection while maintaining insulation from the sender's body. By accurately measuring and relaying the transmission oil pressure, this sender plays a crucial role in providing essential data for monitoring and diagnosing the transmission system's performance.
