Windlass PRINCE DP2 - 500w - 12v - Chain 6mm - Low Profile

0307008
792.81
In stock

Complete with control box and handle

For boats from 5 to 9 meters

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandQuick S.p.A. Shipping fromCroatia
Boat size, m
5-9
Chain diameter, mm
6
Deck thickness, mm
20÷30
Drum
No
Gypsy, mm
6
Max chain speed mt/min
28,9
Max working load, kg
200
Watt
500
Brand
Quick S.p.A.
Rope diameter, mm
12
Voltage, V DC
12
EAN
8057090065077
Dimensions in packaging
Weight, kg
9,8
Find similar

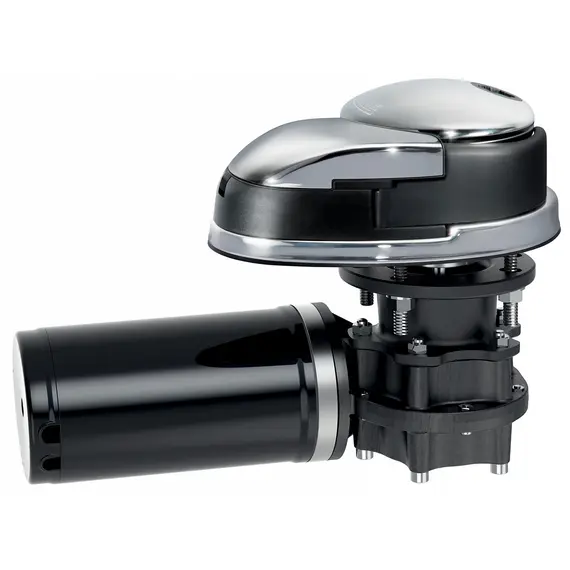

Vertical windlasses without a drum, produced of AISI 316 stainless steel. Single gypsy with rope and chain, built-in sensor and magnet for chain counter and manual Free-Fall mechanism. The gearbox is in anodized aluminium, motor is equipped with a waterproof casing IP66. Comes with a pressure lever and inspection lid. Equipped with handle and control box.

Additional materials

Technical Manual (DPSeries_rev001C_EN.pdf, 2,631 Kb) [Download]
