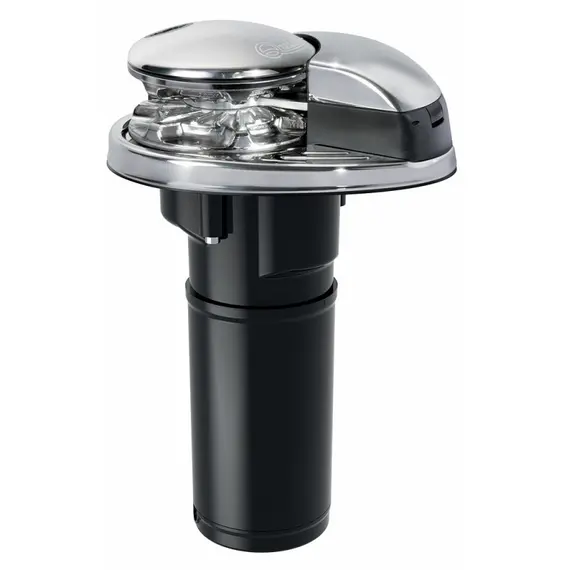

Windlass DP2L - 350w - 12v - Chain 6mm - Low Profile

0307036
766.68
In stock

Compact, Elegant, Simple installation

Complete with control box and handle

For boats from 6 to 8 meters

FNI
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandQuick S.p.A. Shipping fromCroatia
Boat size, m
6-8
Chain diameter, mm
6
Deck thickness, mm
20÷40
Drum
No
Gypsy, mm
6
Max chain speed mt/min
17,0
Max working load, kg
84
Watt
350
Brand
Quick S.p.A.
Voltage, V DC
12
Weight, kg
6,5
EAN
8057090239072
Find similar

Vertical anchor windlass with a base made of Aisi 316 stainless steel and BMC. Line and chain on a single barbotin. Magnet and sensor are integrated into the chain counter. Chain free fall mechanism operates manually. Equipped with a tensioning mechanism. IP66 watertight motor has inspection flap and BMC gearbox housing. Complete with handle and control box.

Additional materials

Technical Manual (DP2L_rev000A_EN.pdf, 1,328 Kb) [Download]
