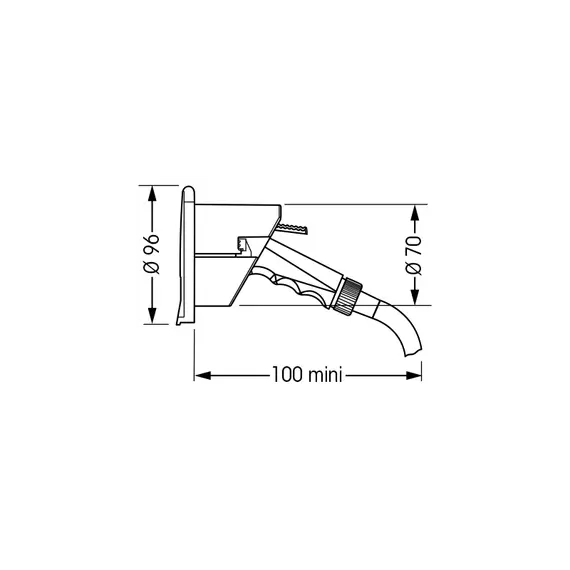

Installation dimensions, mm
70
Specification
With shower and 3 meters tube
Brand
Plastimo
MPN
67596
Color
Chrome
EAN
3162420675965
Main characteristics
Diameter, mm
96

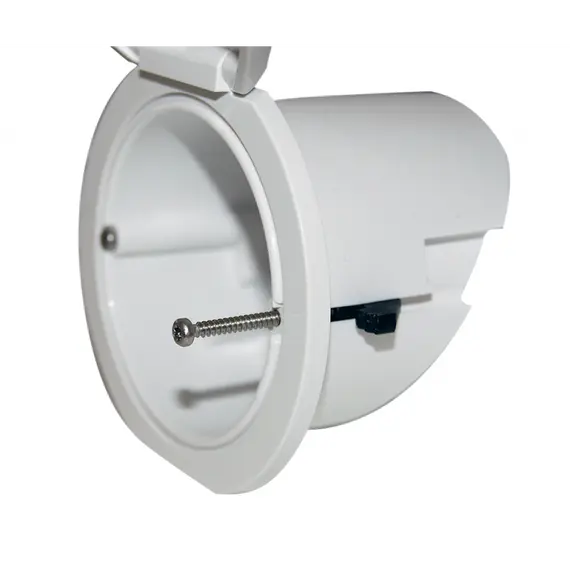

Constructed from UV resistant ABS material, this product includes a watertight lid made of ASA for added protection. It is designed for flush mounting, making installation easier. The innovative feature of this design is the integration of A4 Torx stainless steel screws on both sides of the housing, connected to self-locking wings.
This eliminates the need for drilling four holes for fixing screws. To achieve a flush installation on the transom or deck, only a Ø 70 mm hole is required, and tightening two screws from the front of the housing. As the screws are tightened, the locking tabs lift up and firmly secure against the rear of the bulkhead.
