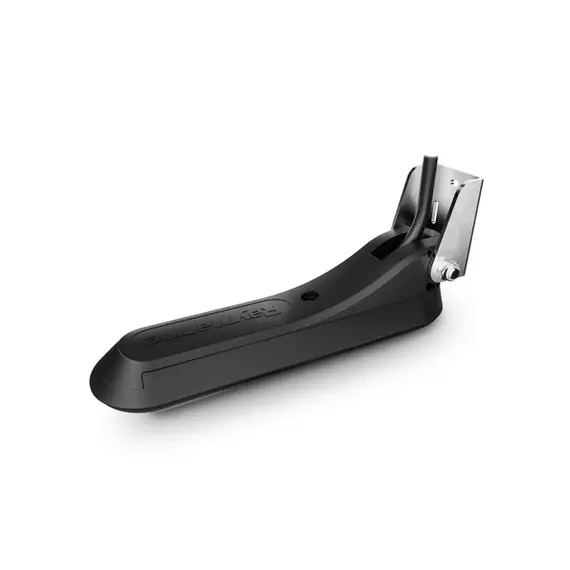

RV-100 Transom Mount Transducer

Raymarine's RV-100 All-In-One Transom Mount Transducer offers enhanced capabilities in identifying structures and locating fish through the use of RealVision 3D sonar, providing unparalleled clarity. The RV-100 is a state-of-the-art device that functions as a transducer with four channels and a Wide Spectrum CHIRP technology. It includes DownVision™, SideVision™, high-frequency CHIRP fish targeting, and RealVision 3D™ sonar capabilities, making it highly advanced. The transducer incorporates an integrated attitude and heading reference system (AHRS) to guarantee stability and precise imaging of the underwater surroundings. This AHRS system automatically adjusts for the movement of the vessel and eliminates distortions caused by waves, swells, or maneuvers, thereby ensuring accurate results.

In addition to its imaging capabilities, the RV-100 also includes a fast-response water temperature sensor for precise and rapid readings. The transducer is specifically designed for easy transom mounting on outboard-powered motor boats, featuring a robust marine-grade stainless steel mounting bracket that incorporates an integrated kick-up mechanism. This feature provides protection against potential damage caused by collisions with floating debris, rocks, or stumps.

For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available, offering an alternative mounting solution. Moreover, stepped hull vessels can utilize the RV-100 with the separate stainless steel step-mounting bracket (A80479, sold separately).
