Fusion® Signature Marine Amplifier 1600-Watt - 5 Channel

5602825
488.34
List price: 542.60  -10%
In stock

True-Marine™ design ensures durability in harsh marine conditions

Class-D technology for high output with low battery drain

Superior audio performance, marine-ready design, polished stainless steel finish

FNI
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandGarmin Shipping fromItaly

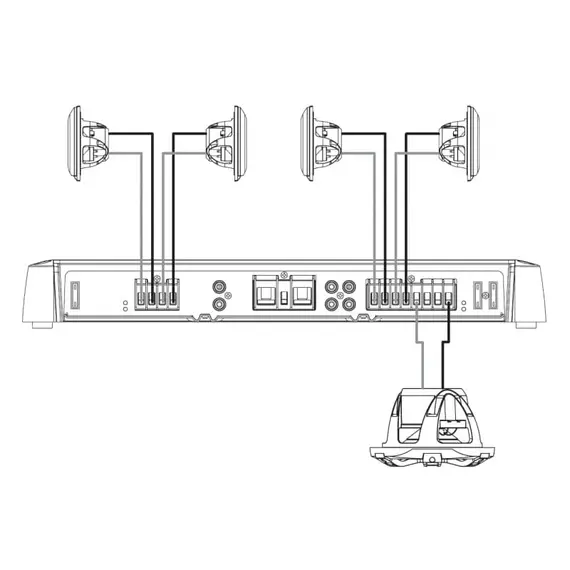

The Signature Series 1600-watt 5-channel amplifier represents a pinnacle in marine audio power, capable of driving up to four pairs of speakers and one subwoofer. Crafted with precision and adhering to Fusion's True-Marine™ standards, this amplifier series has undergone rigorous testing, ensuring high resistance against salt fog, temperature variations, vibration, and UV exposure.

Key Features:

True-Marine™ Design Philosophy:

Developed on Fusion's True-Marine design principles, the Signature Series amplifiers undergo extensive testing to provide robust protection against harsh marine conditions, including salt fog, temperature fluctuations, vibration, and UV exposure.

Class-D Amplifier Technology:

Employing highly efficient Class-D amplifier technology, this series achieves a lower battery drain while delivering a higher output compared to Class-AB amplifiers. This results in increased power to connected speakers and subwoofers, elevating the audio performance to new heights.

Superior System Performance:

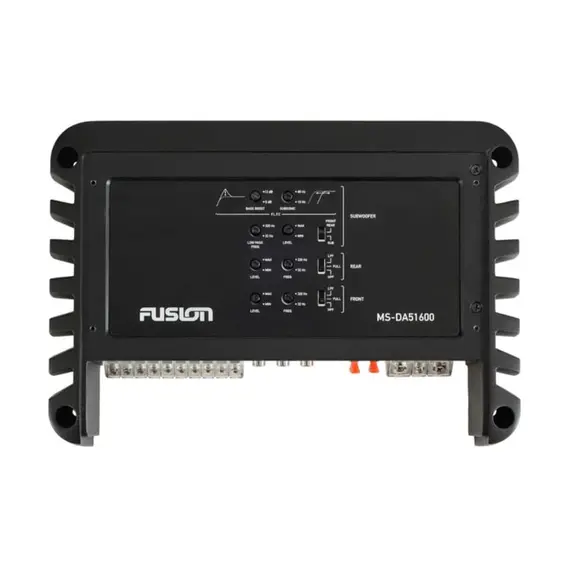

Equipped with built-in variable bass boost, a subsonic filter, and variable low/high pass crossover filters, the Signature Series amplifiers ensure superior audio performance and enhanced system protection, allowing for optimal customization.

Marine-Ready Design with Conformal Coated PCBs:

To enhance durability and extend the life of the amplifiers, the Signature Series features conformal coated PCBs, providing additional protection against marine elements.

Rigid Aluminum Alloy Heat Sink:

The molded rigid aluminum alloy heat sink forms a singular die-cast chassis, improving efficiency. Precision-calculated fin layout increases the heat sink's surface area, promoting effective heat dissipation for sustained performance.

Stainless Steel Mirror Finish:

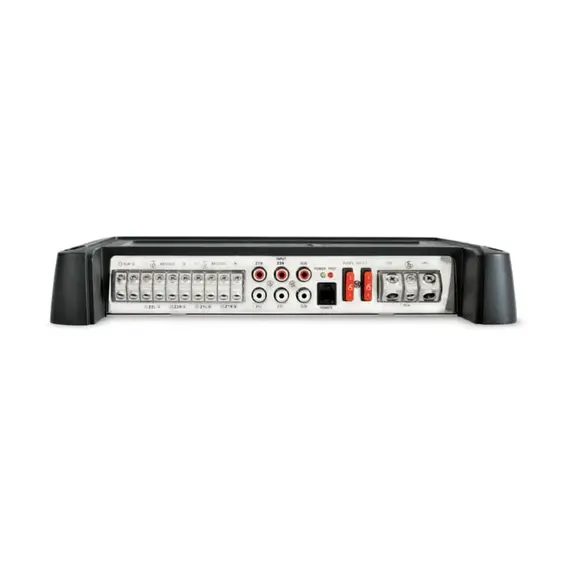

The polished stainless steel control panel cover not only conceals and protects cable connections and settings controls but also enhances the amplifier's aesthetic appeal. This mirror finish complements any installation, adding a touch of sophistication to the marine audio setup.

The package includes: one amplifier; four 8-gauge, self-tapping screws; 3 mm hex key (for the top cover and power terminals); 2.5 mm hex key (for the speaker terminals); polishing cloth; spare J1171 compliant 40 A blade-type fuse.

Channels
5
Dimensions, mm
300x210x50
Max power, watt
1600
Voltage, V DC
12
Operating temperature
0°C to +50°C
Brand
Garmin
EAN
753759152987
Model
MS-DA51600
Dimensions in packaging
Weight, kg
1.8
Height, mm
163.0
Length, mm
192.0
Volume, cm3
3.69
Unit type
N
Additional Information
MPN
010-01968-00
Additional materials

Installation Manual (MS-DA51600_Amplifier_Manual.pdf, 1,650 Kb) [Download]
