Solar Panel TX-22052 12V 120 Wp

60242052
1,138.65
In stock

Cell Characteristic:
Monocrystalline Solar Cell - Current Temp. Coeff. (Isc): 0.46%/K - Voltage Temp. Coeff. (Uoc): -0.32%/K - Power Temp. Coeff. (Pmax): -0.40%/K
Standard test conditions: AM 1.5, 1000W/m², 25°C

topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandSunWare Shipping fromCroatia

So far, rollable or foldable modules were always available only with low-power thin-film solar cells.
Thus periode is now over. With the TX series SunWare now offers foldable modules based on crystalline high-performance solar cells with an efficiency of 22.1%.

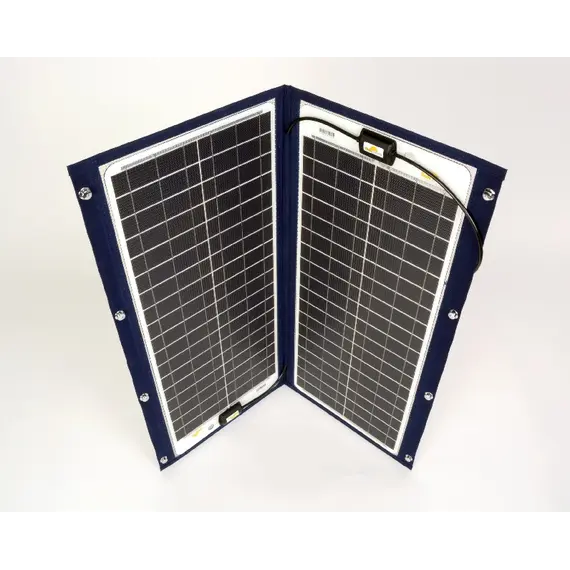

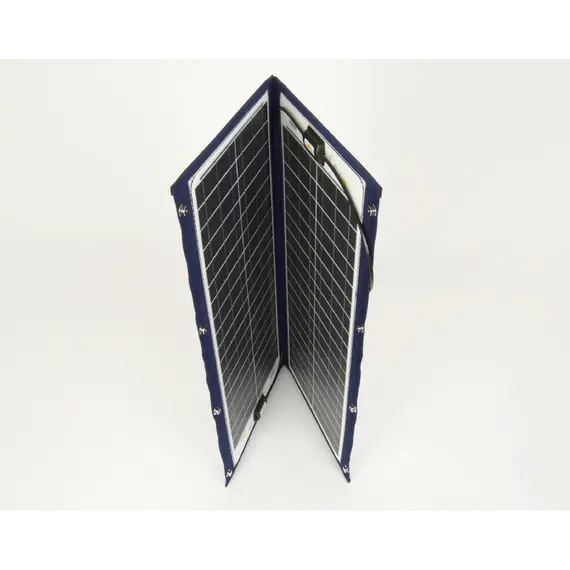

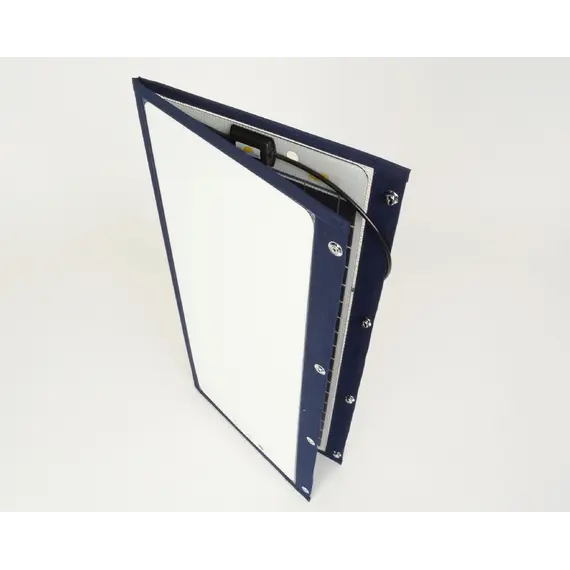

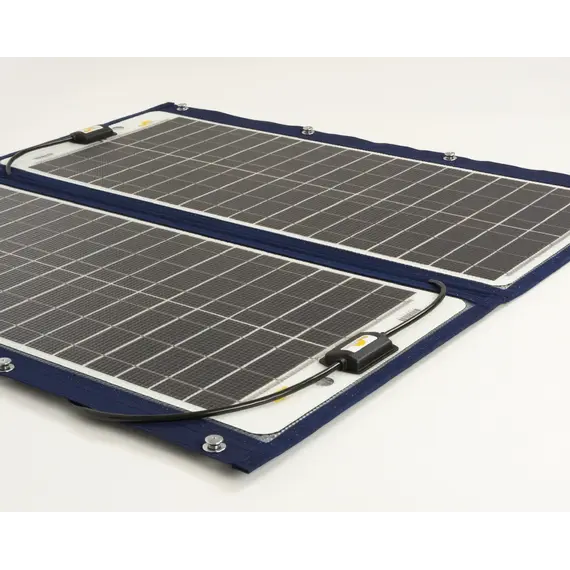

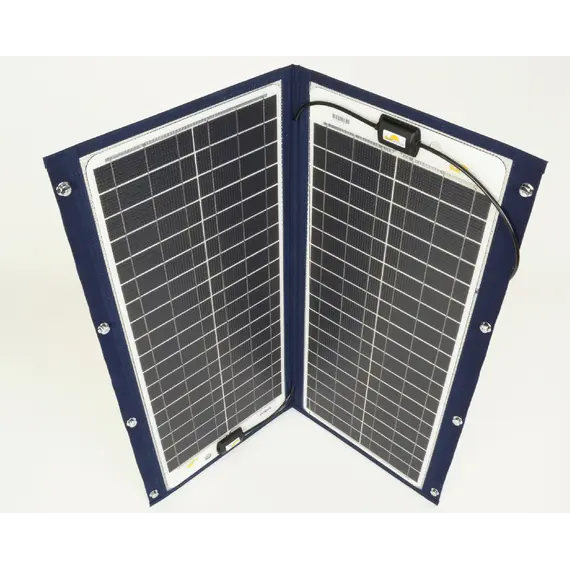

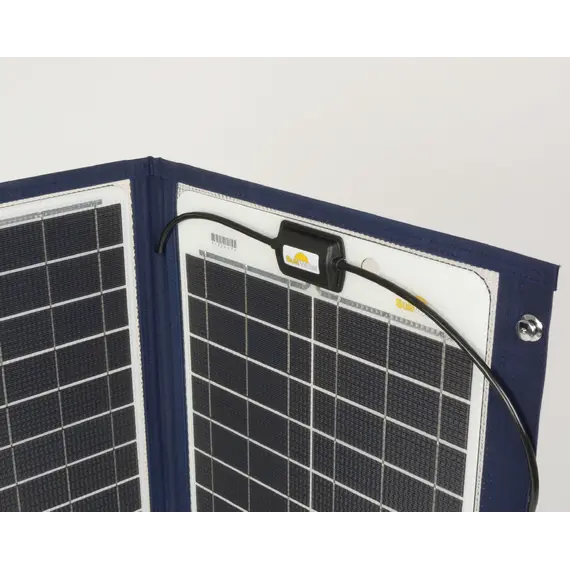

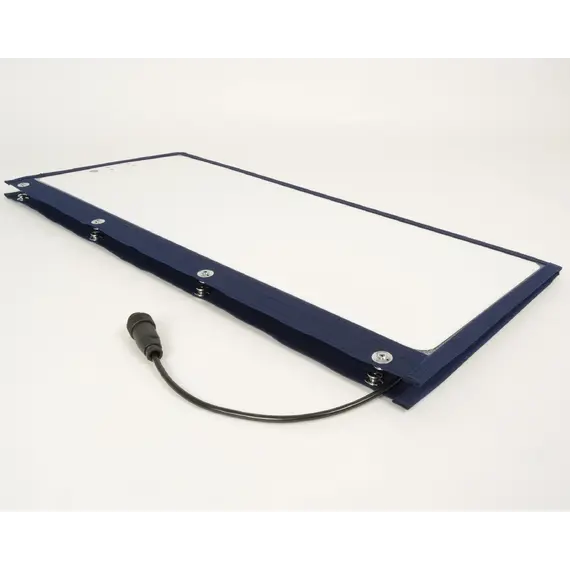

The TX-22052 is a 2-leaf solar module with textile surround. Thanks to the textile joint it can simply be folded to small transport dimensions of 413 x 1106 x 25mm. Each wing of this module works independently! This particular electrical interconnection set up by SunWare causes when an element is shaded, the other wing produce full power further on.

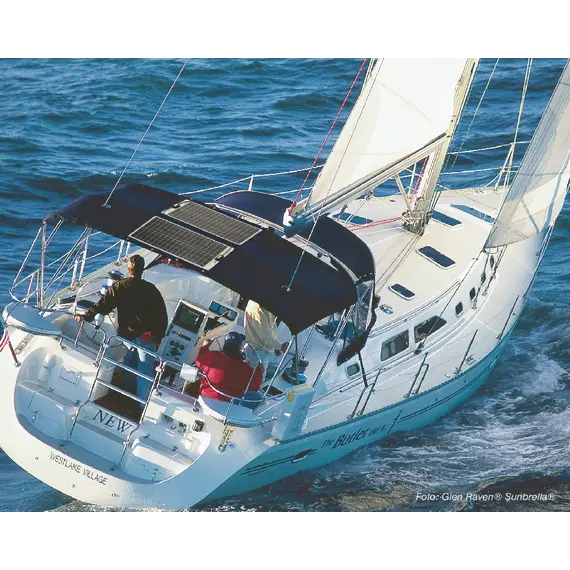

For example, when the spray hood where the two-wing module was mounter was folded together, just hang the module over the railing. Almost no matter how the boat is to the sun, the sun side of the TX-22039 always produces full charging current.
Panel bag is in scope of delivery.

Cable (mm2)
2x2,5mm², red/blue, 1+10m
Cable diameter(mm)
8.5
Cable lenght (m)
1
Cell type
Monocrystalline
Dimensions, mm
413x1106x25
Imax (A)
6.20
Lenght (mm)
1106.0
Pmax (Wp)
120
Umax (V)
19.35
Uoc (V)
24.5
Width, mm
826
Brand
SunWare
Dimensions in packaging
Weight, kg
5.1
Main characteristics
Volt (V)
12
Additional Information
MPN
4260278640629
Additional materials

Datasheet (DB_Module_TX_12V_24V_2022_US.pdf, 590 Kb) [Download]

Manual (InModTx2014_all.pdf, 1,936 Kb) [Download]

Pin-Layout for Binder Connectors (Pinbelegung_Binder_EN.pdf, 308 Kb) [Download]
