Solar Panel TX-12039 12V 45 Wp

60241039
Write a review
520.16 €
SunWare
In stock

Cell Characteristic:
Monocrystalline Solar Cell - Current Temp. Coeff. (Isc): 0.46%/K - Voltage Temp. Coeff. (Uoc): -0.32%/K - Power Temp. Coeff. (Pmax): -0.40%/K
Standard test conditions: AM 1.5, 1000W/m², 25°C

+ −
Add to Wishlist
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

+37253060890

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandSunWare Shipping fromCroatia

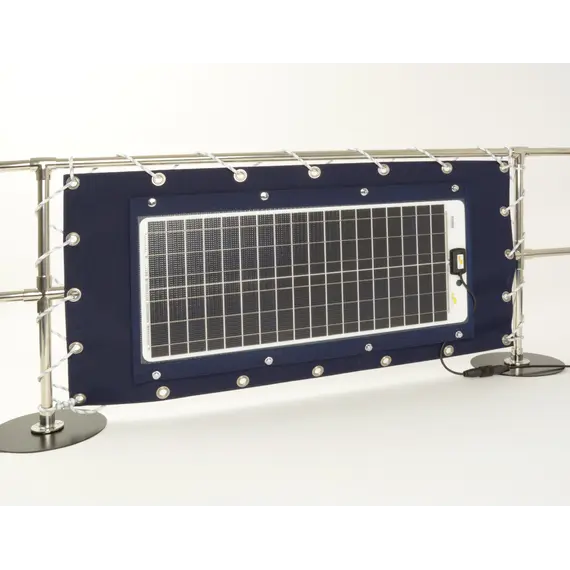

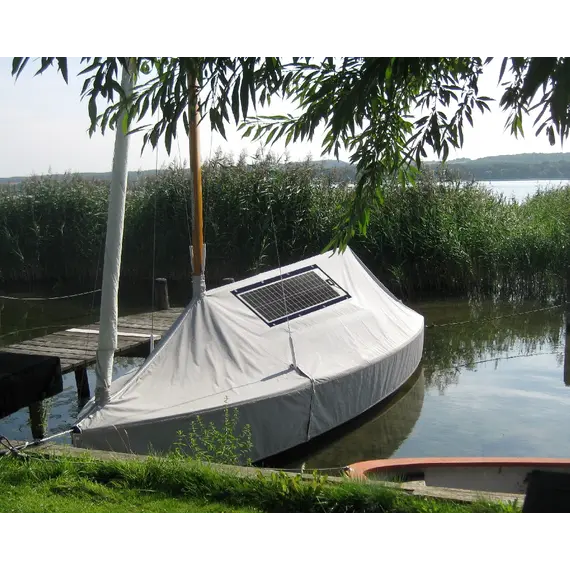

The slim module TX 12039 with 45Wp is intended for use on wind dress or other textile fabrics.

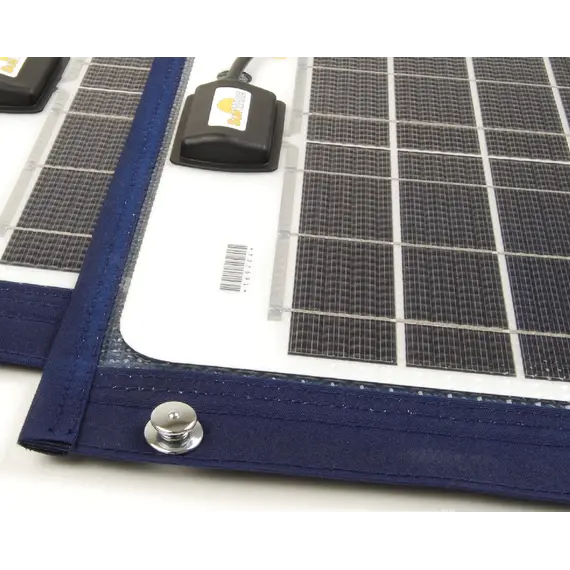

On the long sides 4 Tenax tops for easy attachment are inserted. The attached bases are screwed into the textile fabric, then snap on the module - Done.

Cable (mm2)
2x1,5mm², red/blue, 1+10m
Cable diameter(mm)
6.5
Cable lenght (m)
1
Cell type
Monocrystalline
Imax (A)
2.30
Lenght (mm)
873
Pmax (Wp)
45
Umax (V)
19.57
Uoc (V)
24.5
Width, mm
431
Brand
SunWare
Dimensions in packaging
Weight, kg
2.2
Main characteristics
Volt (V)
12
Additional Information
MPN
4260278640582
Find similar
Additional materials

Datasheet (DB_Module_TX_12V_24V_2022_US.pdf, 590 Kb) [Download]

Manual (InModTx2014_all.pdf, 1,936 Kb) [Download]

Pin-Layout for Binder Connectors (Pinbelegung_Binder_EN.pdf, 308 Kb) [Download]
