Solar Panel RX-22252 24V 120 Wp

60242652
1,158.82
In stock

Cell Characteristic:
Monocrystalline Solar Cell - Current Temp. Coeff. (Isc): 0.46%/K - Voltage Temp. Coeff. (Uoc): -0.32%/K - Power Temp. Coeff. (Pmax): -0.40%/K
Standard test conditions: AM 1.5, 1000W/m², 25°C

topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandSunWare Shipping fromItaly

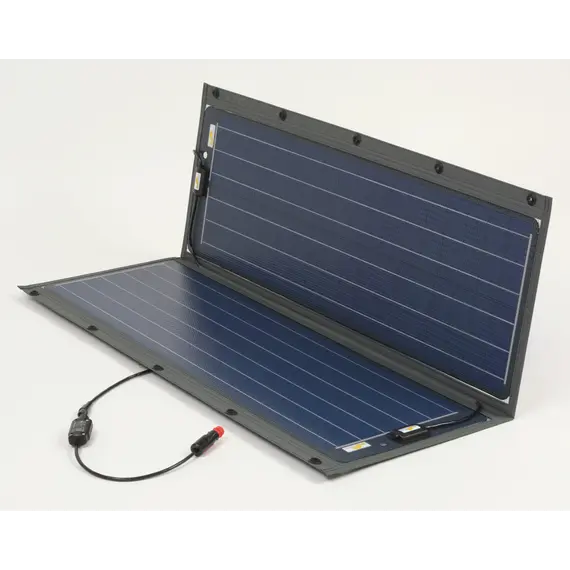

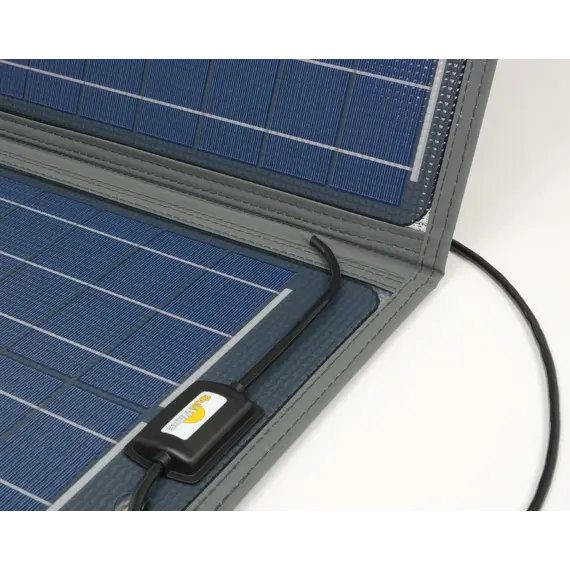

The compact RX-22052 solar module can easily be plugged into a 12V socket or cigarette lighter with the enclosed charge controller FOX-062. Just plug it in and recharge your battery. 5m cable attachted at the module.
Your vehicle may be in the shadow and the module in full sun generate power effectively. If 5m are insufficient an extension cord can be plugged in between. 5m and 10m extension cords are available.

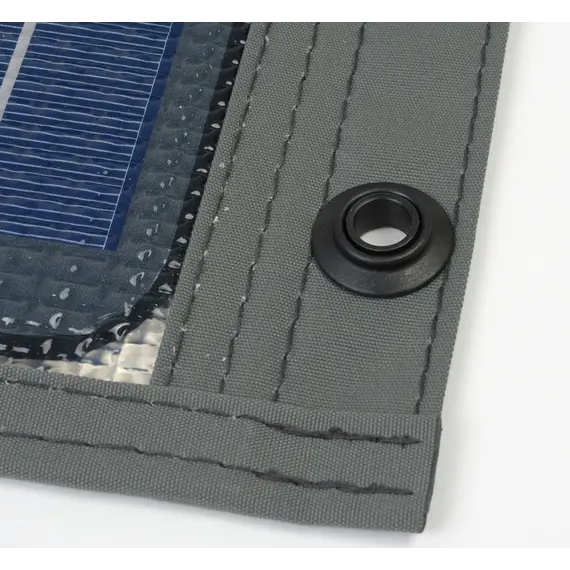

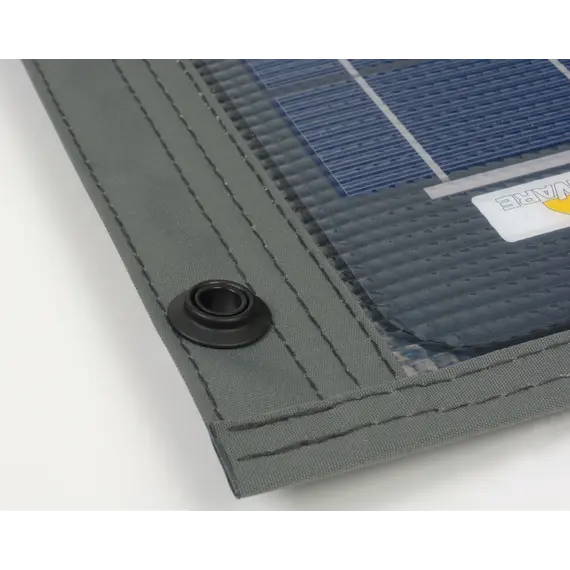

In the textile edge eyelets with 9mm inner diameter are integrated to allow nearly endless fixing possibilies.

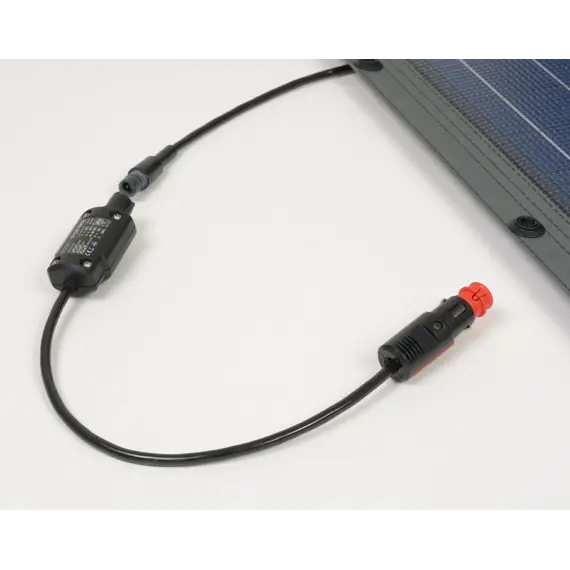

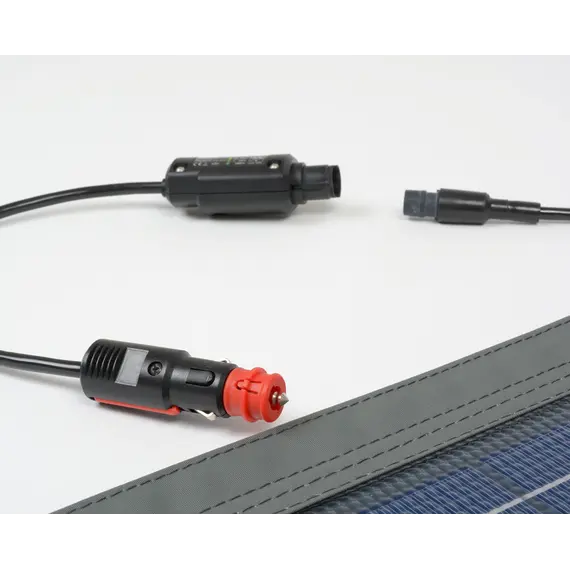

FOX-062 charge regulator included!

By the foldable design, the module can be easily stored or carried on trips. The cells are supported by the a little bit flexible carrier plate made from aluminum sandwich to protect the cells against cell breakage.
Panel bag is in scope of delivery.

Cable (mm2)
1.5
Cable diameter(mm)
6.5
Cable lenght (m)
5
Cell type
Monocrystalline
Imax (A)
3.10
Lenght (mm)
1106
Pmax (Wp)
120
Umax (V)
38.71
Uoc (V)
49.6
Width, mm
826
Brand
SunWare
Dimensions in packaging
Weight, kg
5.1
Main characteristics
Volt (V)
24
Additional Information
MPN
4260278641329
Additional materials

Datasheet (DB_Module_RX_12V_24V_2022_EN.pdf, 624 Kb) [Download]

Manual (InstModRx2015_DE_EN.pdf, 221 Kb) [Download]

Package content RX panels (fox_062_Anschluss_RX_EN.pdf, 55 Kb) [Download]
