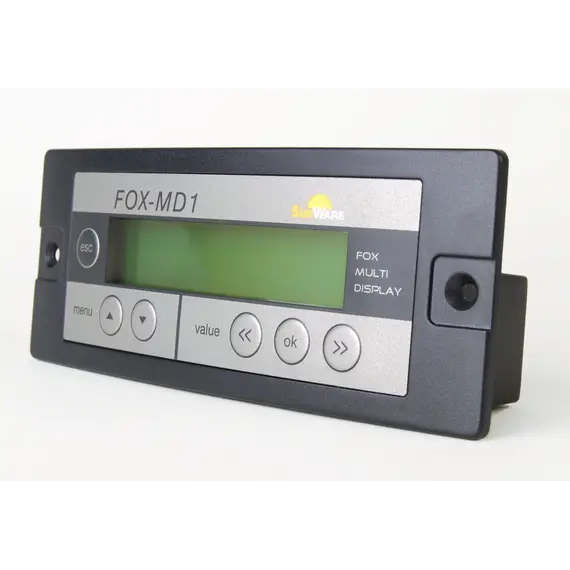

Charge Controller FOX-MD1
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.
Installation

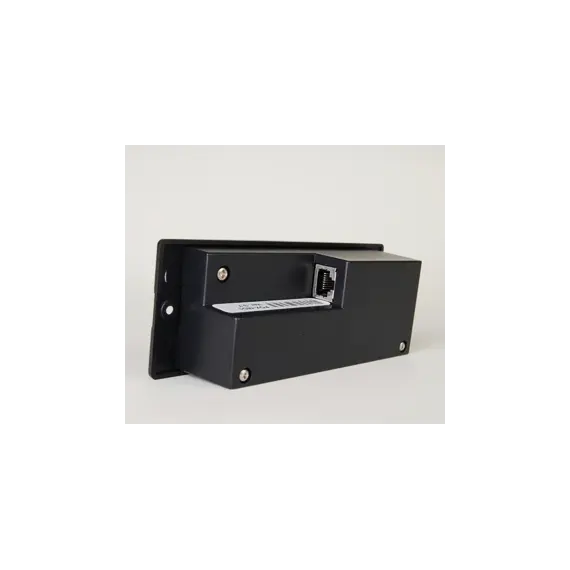

The FOX-MD1 is simply connected with the prefabricated cable. A connection cable with 5m length is included with the product. The maximum cable length is 10m.
Display

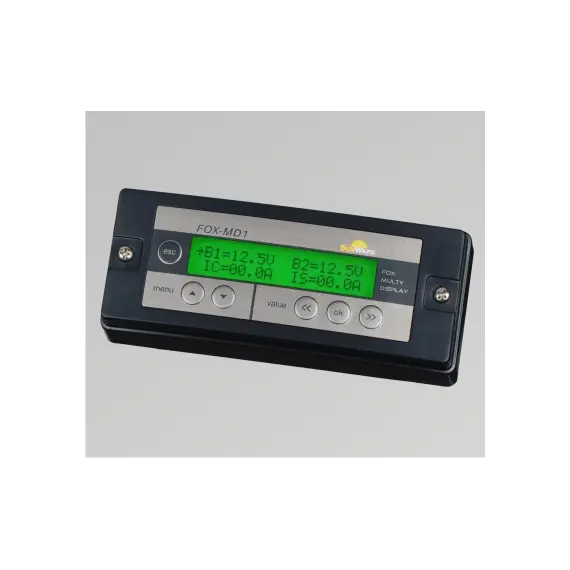

Thanks to the large display with backlight, the data can be easily read even in dark environments. After 10 sec. with no button press, the backlighting will automatically switch off again to save energy. The contrast of the display can be adjusted via the menu. The large 2-line display with 20 characters shows actual alues of the charging current (Ic), current generated by the panel (Is), discharge current (Il) and battery voltages. An arrow indicator in the display shows which battery actually be charged.
The status of the batteries voltages could also be shown with bar graphs.
The FOX-MD1 can be used to set parameters, function, settings in the connected FOX device. Depending on the connected device: e.g. the battery type (AGM, gel, lead acid), charging ratio B1 to B2.
Mounting

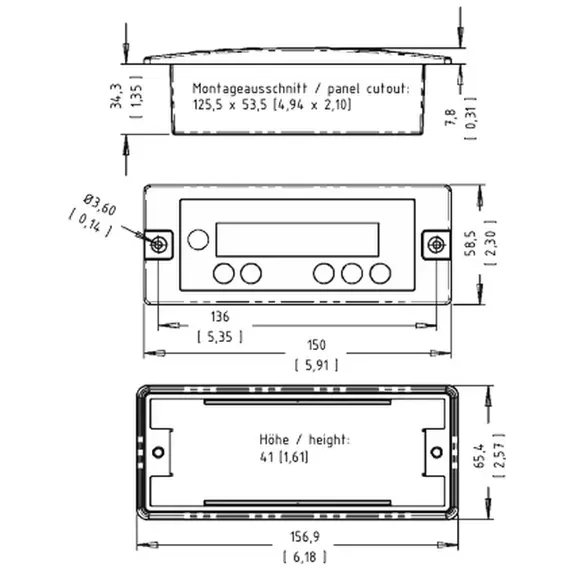

The FOX-MD1 can be used as built-in or surface mounted unit. Therefore, a mounting frame is included with every FOX-MD1. A cable with 5m length is inside the package. The maximum cable length is 10m.
