AC-connection
screw-clamp 2,5 mm² (AWG 6)
Battery capacity, Ah
150-500
Battery-connection
M8 studs
Charge characteristic
IUoUo (three step)
Charge voltage ‘absorption’,V (DC)
28.5
Charge voltage ‘float’,V (DC)
26.5
Charging Current, A
50
Depth, mm
147
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
185 - 264
Input voltage, V (DC)
180 - 400
Power factor
1
Protection
a,b,c,d
Protection category, IP
IP 21
Temperature sensor
Yes
Width, mm
250
Brand
Victron Energy
MPN
SDTG2400501
Weight, kg
5,5
EAN
8719076025740
Operating temperature
-40 to +50°C
Main characteristics
Height, mm
365

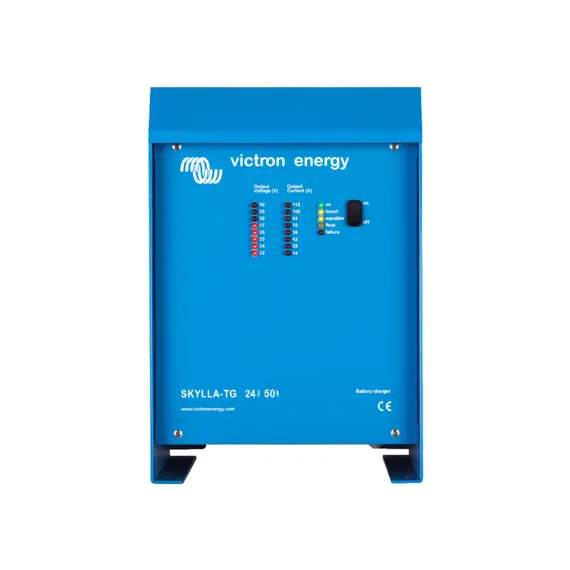

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.
