Skylla-TG 24/30 GMDSS
SDTG2400302
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact
Taxes
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.
Delivery
Returns
BrandVictron Energy
Shipping fromItaly

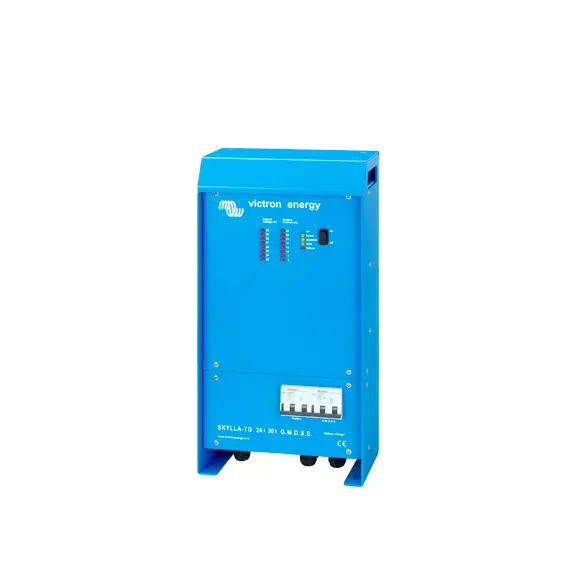

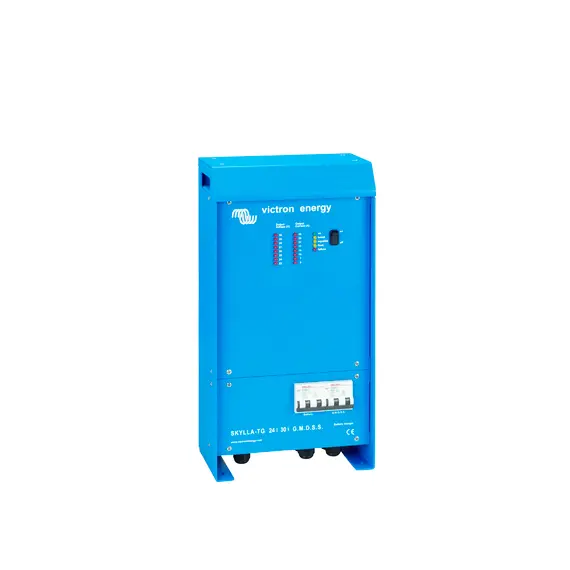

The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.
AC-connection
Three wire 2,5 mm² (AWG 6) cable Length: 2 m
Battery-connection
Two 1,5 m cables
Charge characteristic
IUoUo (three step)
Charge voltage ‘absorption’,V (DC)
28,5
Charge voltage ‘float’,V (DC)
26,5
Charging Current, A
30
Depth, mm
147
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
120 - 230
Power factor
1
Protection
a,b,c,d
Protection category, IP
IP 21
Temperature sensor
Yes
Width, mm
250
Operating temperature
-40 to +50°C
Brand
Victron Energy
EAN
8719076025726
Dimensions in packaging
Weight, kg
6
Main characteristics
Height, mm
485
Additional Information
MPN
SDTG2400302
