Save 10%
Battery capacity, Ah
150-350
Battery-connection
M6 bolts
Charge voltage ‘absorption’,V (DC)
28,8
Charge voltage ‘float’,V (DC)
27,6
Charging Current, A
35
Depth, mm
131
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
120 - 230
Optional remote display/operation
Yes (can be connected to a Li-Ion BMS)
Power factor
0,98
Protection
Battery reverse polarity (fuse) / Output short circuit / Over temperature
Protection category, IP
IP65
Temperature sensor
Yes
Width, mm
265
Brand
Victron Energy
MPN
SKY024035100
Weight, kg
6
EAN
8719076051992
Operating temperature
-20 to 60°C
Main characteristics
Height, mm
401

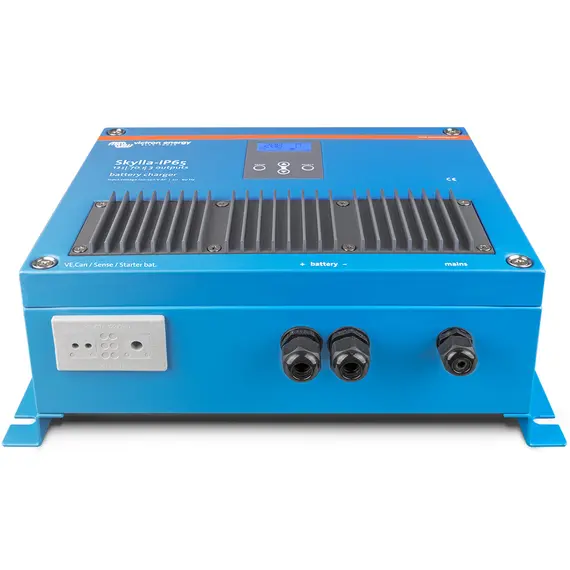

A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.
The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.
The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.
Both models are available in two versions:
- 3 full rated outputs
- 1 full rated output together with an isolated 3A trickle charge output for a starter battery
