AC-connection
Cable of 1,5 meter with CEE 7/7 plug
Battery-connection
Black and red cable of 1,2 meter. Connects to battery clamps, M6 eyelets or 12 V plug (included)
Charge voltage ‘absorption’,V (DC)
14,4 or 14,7
Charge voltage ‘float’,V (DC)
13,6
Charging Current, A
4
Depth, mm
185
Device type
Charger
Frequency, Hz
50-60
Humidity (non condensing)
max 95%
Protection
Reverse polarity, temperature
Protection category, IP
IP65
Width, mm
61
Brand
Victron Energy
MPN
BPC120480034R
Weight, kg
0,56
EAN
8719076002161
Operating temperature
20 to +40°C
Main characteristics
Height, mm
42

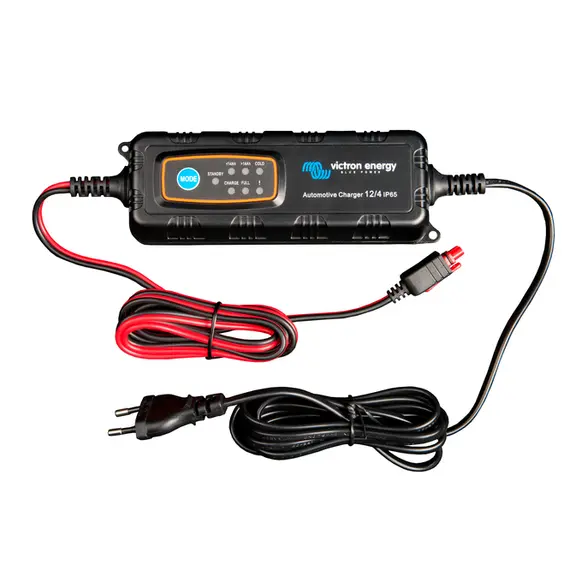

Depending on the application, clamps, eyelets or a cigarette plug (all included) can be connected to the charger.
Low power charger for 6V and 12V batteries:
IP65 Charger 6V/12V-1,1A
Charger for 12V batteries with two charge current options:
IP65 Charger 12V/4A – 12V/0,8A
