AC-connection
IEC 320 C14 inlet with retainer clip (AC cord ordered separately)
Battery-connection
Screw terminals 16 mm² (AWG6)
Charge voltage ‘absorption’,V (DC)
Normal: 14.4V / High: 14.7V /Li-ion: 14.2V
Charge voltage ‘float’,V (DC)
Normal: 13.8V / High: 13.8V / Li-ion: N/A
Charging Current, A
50
Depth, mm
116
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
85-250
Input voltage, V (DC)
90-375
Optional remote display/operation
Yes (2 pole terminal)
Power factor
1
Protection
Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
Width, mm
249
Brand
Victron Energy
MPN
PSC125053085
Weight, kg
2,7
EAN
8719076041634
Operating temperature
-20 to 60°C
Main characteristics
Height, mm
180

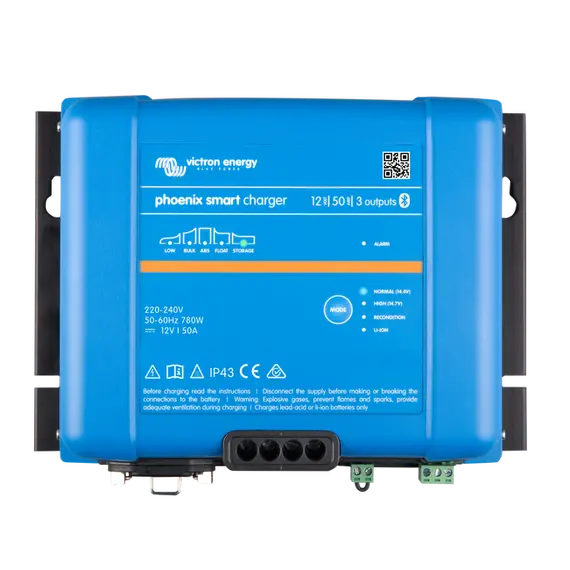

With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet below.
