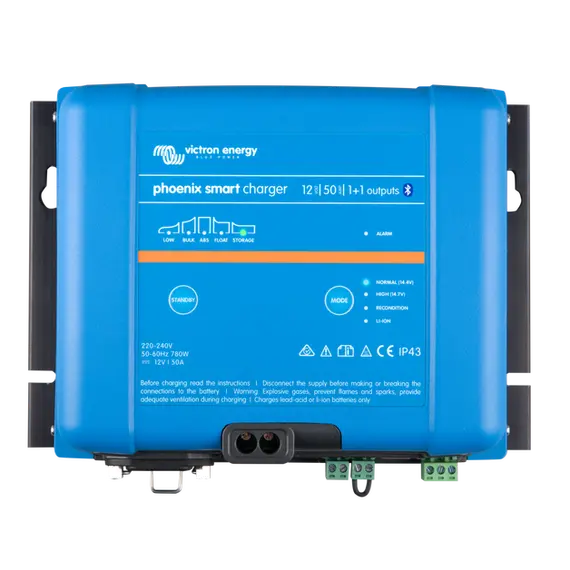

Phoenix Smart IP43 Charger 12/50 (1+1)
PSC125051085
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact
Taxes
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.
Delivery
Returns
BrandVictron Energy
Shipping fromItaly
With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet below.
AC-connection
IEC 320 C14 inlet with retainer clip (AC cord ordered separately)
Battery-connection
Screw terminals 16 mm² (AWG6)
Charge voltage ‘absorption’,V (DC)
Normal: 14.4V / High: 14.7V /Li-ion: 14.2V
Charge voltage ‘float’,V (DC)
Normal: 13.8V / High: 13.8V / Li-ion: N/A
Charging Current, A
50
Depth, mm
116
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
85-250
Input voltage, V (DC)
90-375
Optional remote display/operation
Yes (2 pole terminal)
Power factor
1
Protection
Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
Width, mm
24
Operating temperature
-20 to 60°C
Brand
Victron Energy
EAN
8719076041627
Dimensions in packaging
Weight, kg
2,7
Main characteristics
Height, mm
180
Additional Information
MPN
PSC125051085
