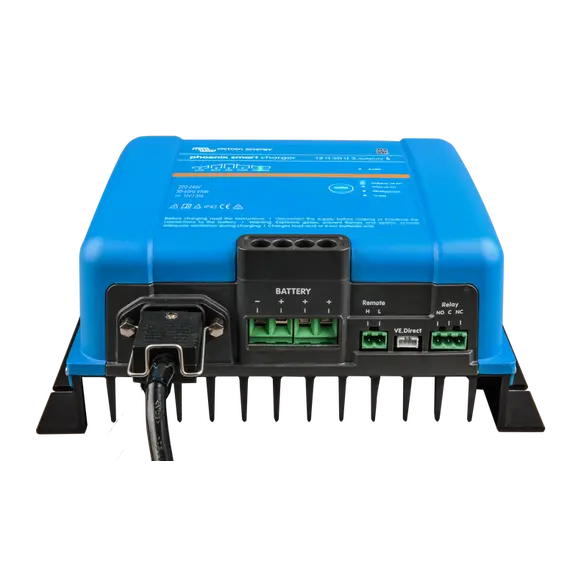

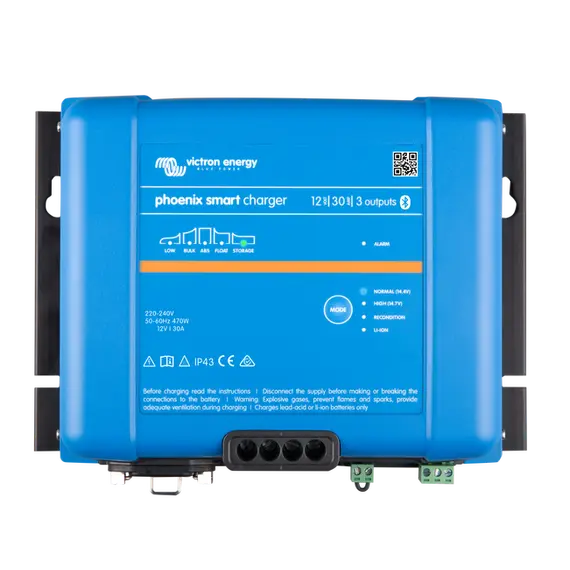

Phoenix Smart IP43 Battery Charger 12/30(3)

23063F
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
BrandVictron Energy Shipping fromCroatia

With boat owners in mind this adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the ‘house’ bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features – see the datasheet below.

Features of Phoenix Smart IP43 Battery Charger 12/30(3)

    AC-connection
    IEC 320 C14 inlet with retainer clip (AC cord ordered separately)
    Battery-connection
    Screw terminals 16 mm² (AWG6)
    Brand
    Victron Energy
    Charge voltage ‘absorption’,V (DC)
    Normal: 14.4V / High: 14.7V /Li-ion: 14.2V
    Charge voltage ‘float’,V (DC)
    Normal: 13.8V / High: 13.8V / Li-ion: N/A
    Charging Current, A
    30
    Depth, mm
    116
    Device type
    Charger
    Frequency, Hz
    45-65
    Height, mm
    180
    Humidity (non condensing)
    max 95%
    Input voltage, V (AC)
    85-250
    Input voltage, V (DC)
    90-375
    Optional remote display/operation
    Yes (2 pole terminal)
    Power factor
    1
    Protection
    Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
    Width, mm
    249
    Weight, kg
    2,7
    EAN
    8719076041917
    Operating temperature
    -20 to 60°C
