AC-connection
screw-clamp 4 mm² (AWG 11)
Battery capacity, Ah
100-200
Battery-connection
M6 studs
Charge characteristic
4 stage adaptive
Charge voltage ‘absorption’,V (DC)
28,8
Charge voltage ‘float’,V (DC)
27,6
Charging Current, A
16
Depth, mm
108
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
90-265
Input voltage, V (DC)
90-400
Power factor
1
Protection
a,b,c,d
Protection category, IP
IP 21
Temperature sensor
Yes
Width, mm
200
Brand
Victron Energy
MPN
PCH024016001
Weight, kg
3,8
EAN
8719076023272
Operating temperature
-20 to 60°C
Main characteristics
Height, mm
350

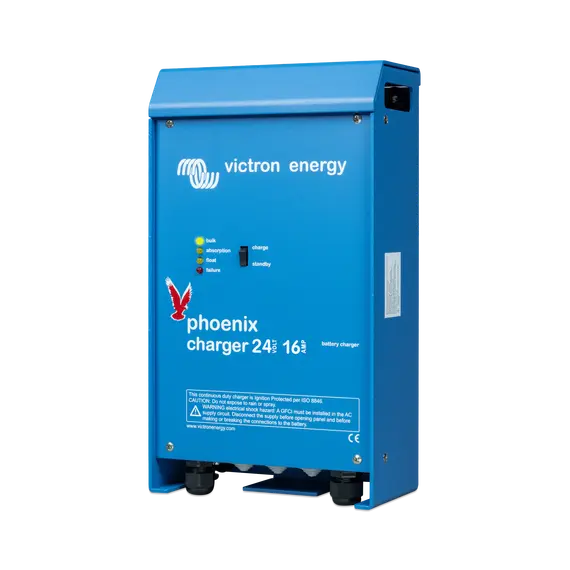

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.
