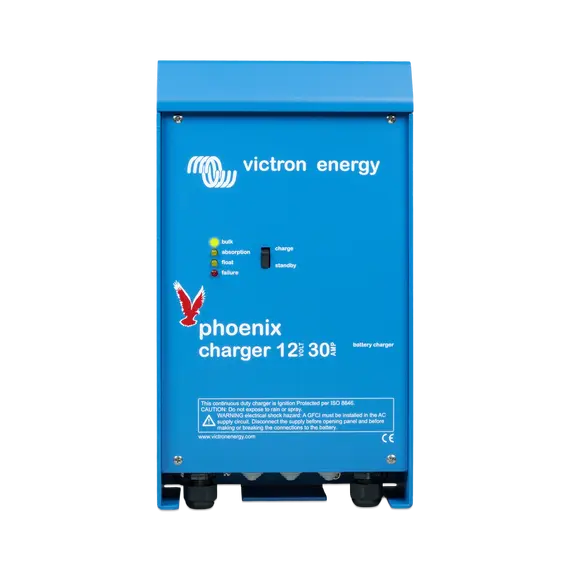

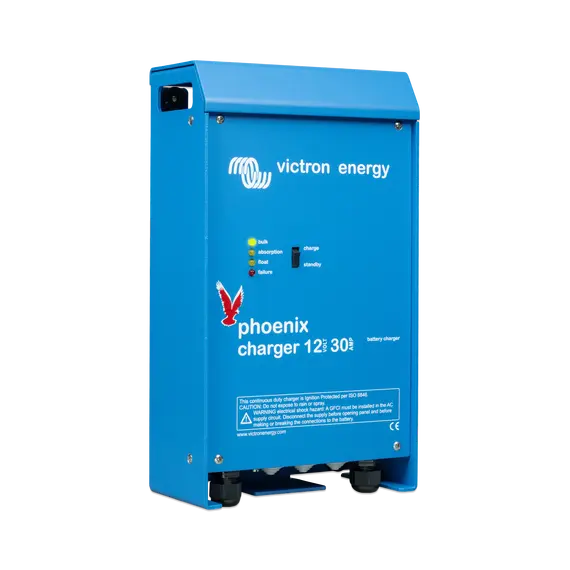

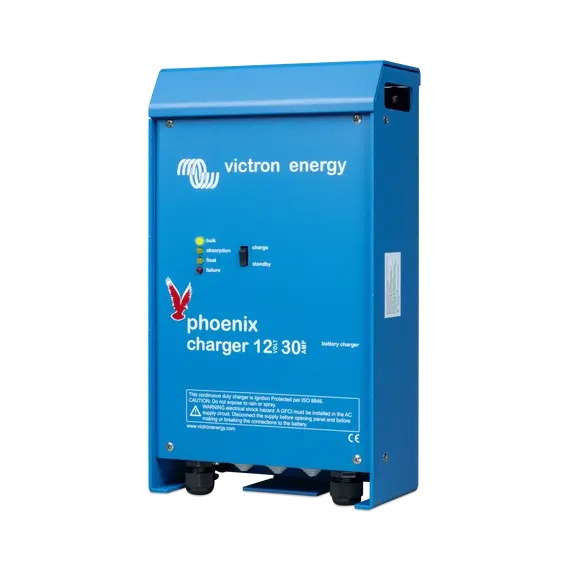

Phoenix Charger 12/30(2+1)
PCH012030001
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact
Taxes
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.
Delivery
Returns
Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.
AC-connection
screw-clamp 4 mm² (AWG 11)
Battery capacity, Ah
100-400
Battery-connection
M6 studs
Charge characteristic
4 stage adaptive
Charge voltage ‘absorption’,V (DC)
14,4
Charge voltage ‘float’,V (DC)
13,8
Charging Current, A
30
Depth, mm
108
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
90-265
Input voltage, V (DC)
90-400
Power factor
1
Protection
a,b,c,d
Protection category, IP
IP 21
Temperature sensor
Yes
Width, mm
200
Brand
Victron Energy
EAN
8719076023258
Operating temperature
-20 to 60°C
Dimensions in packaging
Weight, kg
3,8
Main characteristics
Height, mm
350
Additional Information
MPN
PCH012030001
