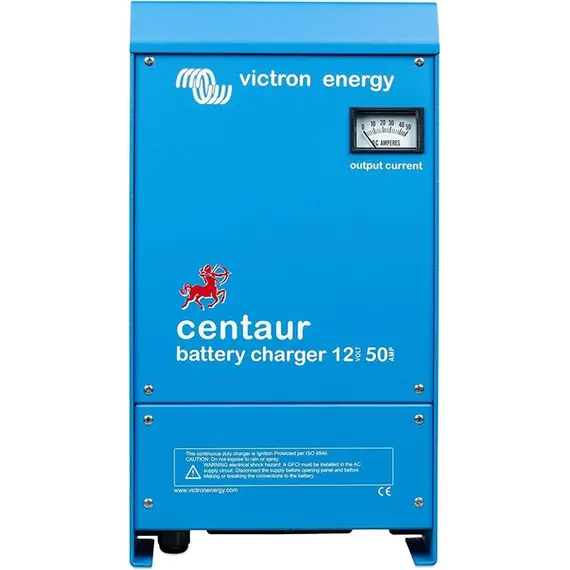

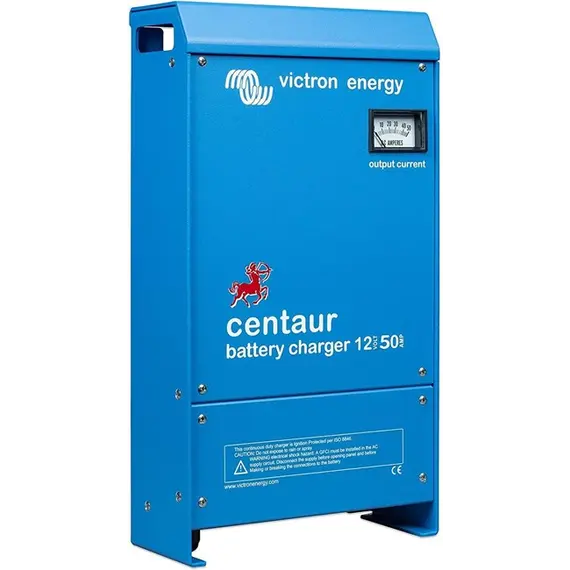

Centaur Battery Charger 12/50

64889S
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+38269541228
Ask a question
Battery capacity, Ah200 - 500 BrandVictron Energy Shipping fromCroatia

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.

The range spans 12V and 24V models from 16A through to 100A.

Features of Centaur Battery Charger 12/50

    AC-connection
    screw-clamp 4 mm² (AWG 6)
    Battery capacity, Ah
    200 - 500
    Battery-connection
    M8 studs
    Brand
    Victron Energy
    Charge characteristic
    IUoU (Three stage charging)
    Charge voltage ‘absorption’,V (DC)
    14,3 / 28,5
    Charge voltage ‘float’,V (DC)
    13,5 / 27,0
    Charging Current, A
    50
    Depth, mm
    135
    Device type
    Charger
    Frequency, Hz
    45-65
    Height, mm
    426
    Humidity (non condensing)
    max 95%
    Input voltage, V (AC)
    90 – 265
    Input voltage, V (DC)
    90 – 400
    Power factor
    1
    Protection
    Output short circuit, over temperature
    Protection category
    IP 20
    Temperature sensor
    Yes
    Width, mm
    239
    Weight, kg
    5
    EAN
    8719076021506
    Operating temperature
    -20 to 60°C
