Nereide 2 Set
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.
NEREIDE 2
A complete digital switching solution for yachts

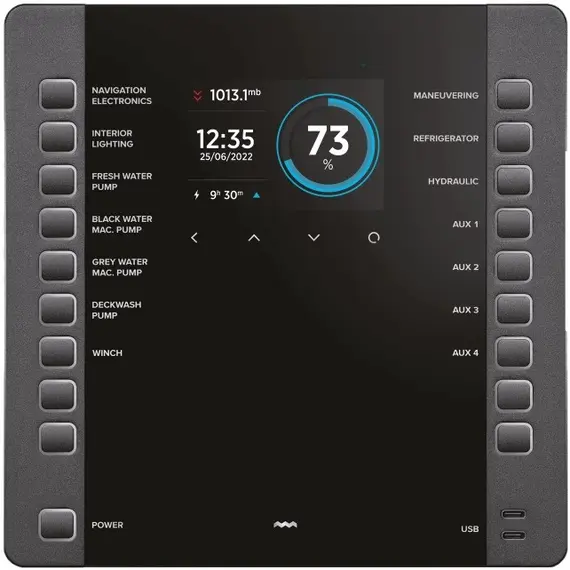

CLASSY DESIGN
- An elegant combination of tactile buttons and a digital display. The aluminum casing and optically bonded display give the control panel a high-end look that complement the interior of your boat or yacht.
- The slightly raised and rounded buttons provide a comfortable feel when touched.
- The front can be flush with the surface or only 5 mm above it.
Also the SPU-303 12V distribution unit is one of a kind
- It’s sleek, compact and has a low profile.
- It features an ultra durable circuit board with protective coating.
- Sleek aluminum casing protects the circuit board and provides efficient passive cooling.
- For easy access and extra protection for relays and fuses, we added removable covers that require no tools to open.
Partnership with HanseYachts AG
- We are honored that our Nereide 2 complements the yacht’s interior of one of the world’s largest manufacturers of sailing yachts, HanseYachts AG.
- This leading German yacht company owns 6 innovative brands, you can find the Nereide 2 at Hanse, Dehler and Fjord.
Ultra low power consumption
- The distribution unit uses only 10 mA, while the panel consumes 30 mA when switched off with the logger active.
- Nereide 2 can be placed between the main battery and the main switch. The beauty of this is that it won’t drain your battery if you don’t sail for a while. Even in this low power mode, the system offers comprehensive remote monitoring and management functions.
DC unit with 31 manually over-rideable output channels
Let’s take a closer look at the DC power distribution unit. It features 30 outputs with a current rating of up to 10 amps and 1 output with a current rating of up to 30 amps. All-together, the unit is rated for a maximum current of 200 amps. To protect your consumers standard automotive mini-fuses are used and are easily replacepable.
Any kind of error, for example blown fuse, stuck relay or lack of supply voltage will be indicated on the corresponding button on the control panel.
CONTROL PANEL ALSO FEATURES
- Tank and voltage module (8 resistance and 7 voltage inputs)
- Error indication with red color around the respective button
- Physical buttons can be configured as a momentary push button or toggle switch.
- Compatibility with all SiCom modules
- Optional integration of remote switch and bilge pump expansion unit.
- Navigational lights display
- Front mount installation
- Automatic illumination
Technical specifications Nereide 2:
| Operating voltage | 6 - 35 V DC |
| Temperature range | -20 to +70°C |
| Normal operation mode: 100 | 200 mA |
| Low power with bilge LED active | 40 mA |
| Low power with bilge LED inactive | 30 mA |
| Radio Frequency Band | 2,4 GHz |
| Dimensions Control panel | 210 x 210 x 40mm |
| Batteries | 6 |
| Shunts | 24 |
| Temperature sensors | 10 |
| Tank level sensors | 14 |
| Inclinometer sensors | 2 |
| SPU-303 | 10 |
| Switches (left & right side) | 18 + 1 (power) = 19 |
| OUTPUT | POWER CONSUMPTION AT 5V |
| 2 X USB 3.0 (charger) | 0,7A |
Technical specifications SPU-303:
| Operating voltage | 12 V DC |
| Temperature range | -20 to +70°C |
| SiCAN | 10 mA |
| 30 Switch channels with automotive mini fuse | 20 A |
| 1 Switch channel with automotive regular fuse | 30 A |
| All channels combined (max current) | 200 A |
| Dimensions | 410 x 169 x 40mm |
