VIA
A complete digital switching system for campervans and RVs
Combination of a control panel and versatile power distribution unit.
All you need to monitor your batteries, tanks, temperatures, refrigerator, cooktop, solar and manage water pump, fridge, heating, lighting, and more.
The VIA control panel comes together with the SPDU52 12V power distribution unit. It’s a versatile module, equipped with 6 switching channels distributed across 12 fuses, a 50 A shunt for the service battery, 40 A shunt for the wall charger, and a 16 A shunt for solar.
It also provides power for other external modules and shunts. Further, it is completely compatible with all the existing expansion modules.
As a backup, the system has a manual override option in case the panel is not working for some reason.
With additional modules you can connect it to up to 6 battery banks, 24 shunts, 10 temperature sensors, 14 tank level sensors, and one inclinometer sensor.
Always know how much power you have left
- When going off grid in search for the great outdoors and their peaceful and picturesque spots, it’s always good to know how long you can stay in the little slice of heaven that you’ve found.
- VIA always gives you accurate data about your batteries’ voltage, their state of charge, the remaining ampere hours, time to charge or discharge, and even their compartment temperature.
Multiple power sources monitoring
- Monitor how much power is coming from your solar or wall charger.
- Optionally you can add the innovative SCQ25 or SCQ50 module to the system to monitor power consumption on your fridge, lights, cooktop, coffee maker, and other appliances.
Water and temperature are now under your control
- Fresh or gray, water or fuel, the VIA system can accurately measure it all. It supports a range of third-party tank sensors – resistance, voltage, and 4-stage level sensors.
- Set multiple calibration points and measure your liquids precisely to the liter.

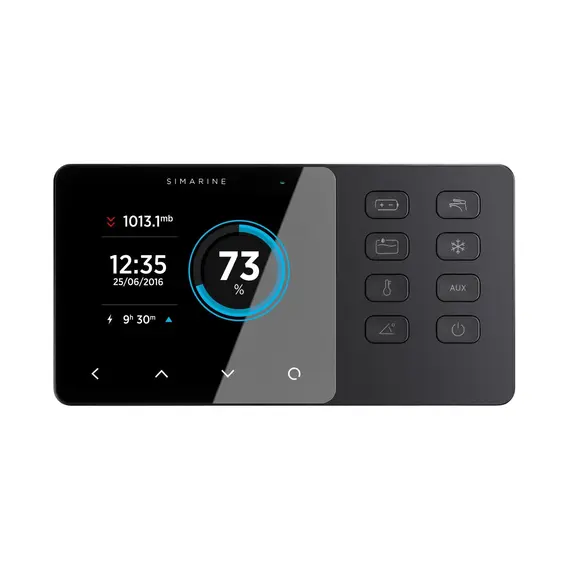

8 of tactile buttons you'll find on the right side of the VIA control panel. They’re here to make your adventure even more fun and easy going.
Configure the POWER OFF button so that the panel switches to SLEEP MODE. In this case, the control panel will use only 5 mA while still gathering all necessary data on the backside. In normal operation mode with WiFi off and 70 % illumination it consumes 40 mA.
Be warned when the battery state, water level, or temperature is too low or too high
- Choose your device, the high and the low thresholds for alarm, and alarm duration and delay.
- The ST107 tank level and voltage module and the SCQ25, SCQ50, SCQ25T have an integrated programmable 12 V alarm signal relay that you can configure to output a signal of 1 A in the event of an alarm.
Technical specifications VIA:
| Operating voltage | 6 - 22 V DC |
| Temperature range | -20 to +70°C |
| Power consumption WiFi on, 100% lighting | 100 mA |
| Power consumption WiFi off, 70% lighting | 40 mA |
| Power consumption WiFi off, 0% lighting | 22 mA |
| Radio Frequency Band | 2,4 GHz |
| Dimensions Control panel | 157.10 x 82.10 x 5.60 mm |
| Batteries | 6 |
| Shunts | 24 |
| Temperature sensors | 10 |
| Tank level sensors | 14 |
| Inclinometer sensors | 2 |
Technical specifications SPDU-52:
| Operating voltage | 6 - 22 V DC |
| Temperature range | -20 to +70°C |
| Operating | 15 mA |
| Power off | 0,25 mA |
| Range | 0 - 65 kOhm |
| Radio Frequency Band | 2,4 GHz |
| K-1 | 20 A |
| K-2 | 20 A |
| K-3 | 15 A |
| K-4 | 15 A |
| K-5 | 10 A |
| K-6 | 10 A |
| All channels combined | 50 A |
| Dimensions SPDU-52 | 200 x 160 x 42 mm |
- Download free Simarine mobile app and easily configure your panel and upgrade its firmware.
Turn on your panel’s Wi-Fi Direct (localhost) and view live data.
