A patented PVC wing profile has been developed for boxed couplings with a unique characteristic: it can be easily applied in a few simple steps without requiring any heat. Here is a breakdown of the application process:

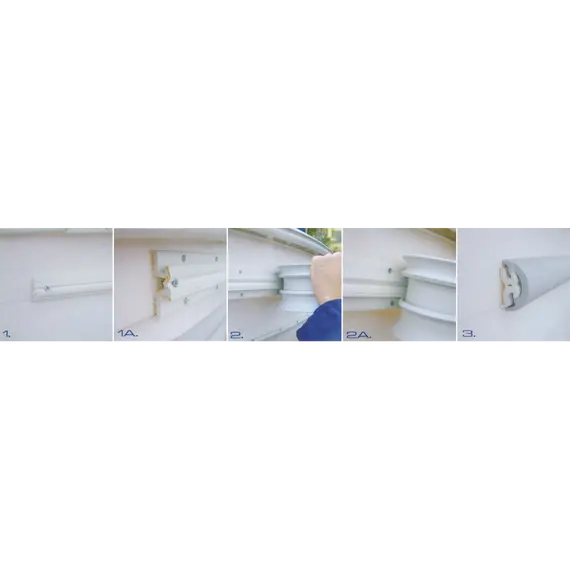

1/1A - Begin by applying the rail and securing it in place using screws or rivets.
2/2A - Next, apply the profile by carefully turning it backward as much as possible, creating a sharp bend. It is important to note that for Radial 80, heating it to 40°C is necessary. As the profile is turned, the two sealing inserts will open, allowing you to firmly press them against the rigid rail while moving forward swiftly.

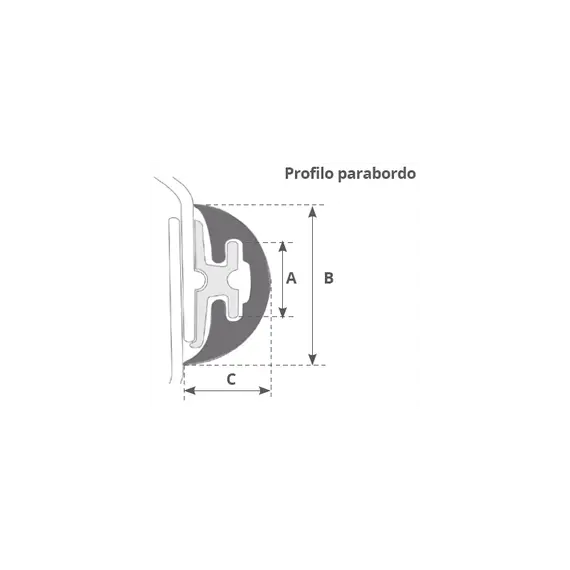

3 - Finally, the product, known as Mod. Radial 40 with dimensions A mm. 20, B mm. 40, C mm. 21, and a total length of 24 meters, is applied.
These steps ensure a quick and efficient installation process for the PVC wing profile, providing a reliable solution for boxed couplings.
