NMEA 2000 Wi-Fi Gateway YDWG-02R with SeaTalk NG Connector
The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

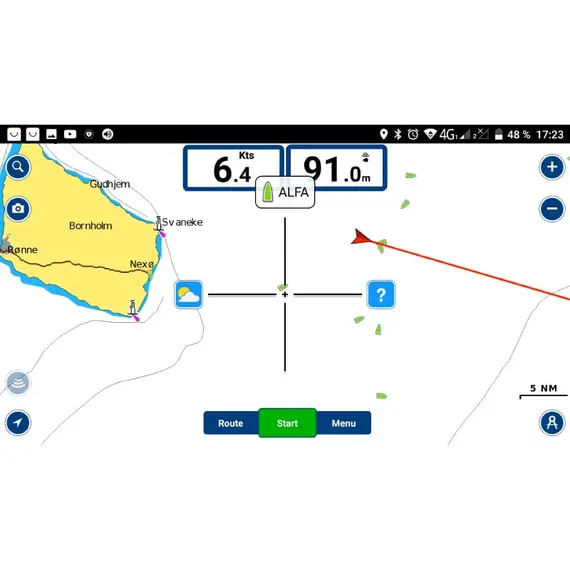

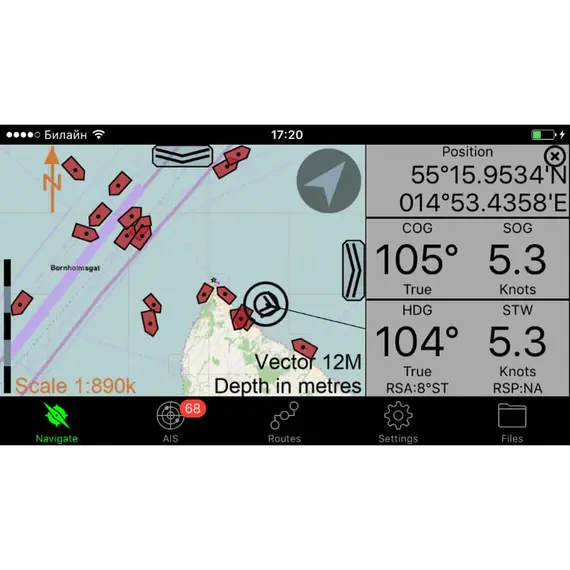

The NMEA 2000 Wi-Fi Gateway facilitates the seamless integration of NMEA 2000 marine digital network data onto PCs or smartphones. This versatile device provides real-time information, including vessel course, speed, position, wind speed and direction, water depth, and AIS messages from vessels and aircraft. The Gateway creates its own Wi-Fi network with a range of approximately 30 meters in open spaces or can connect to an existing Wi-Fi network, allowing extended coverage based on the network's range.
Key Features:
Configuration and Connectivity:
- Configurable using any Wi-Fi-enabled device with a web browser.

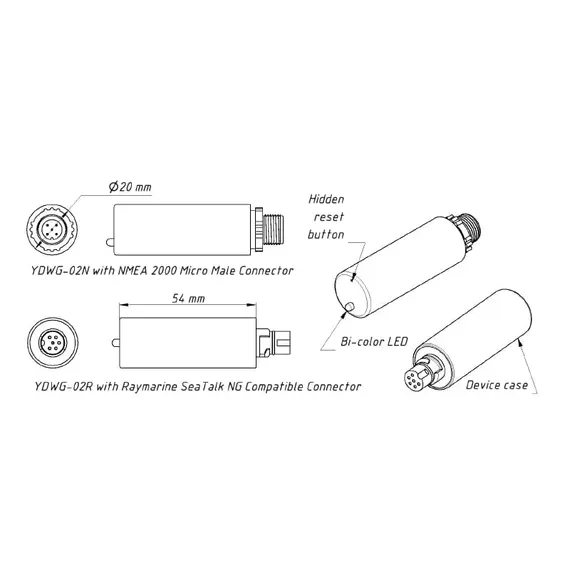

- Can be reset to factory values using a hidden reset button.
- Supports both TCP and UDP network protocols simultaneously, with unlimited clients for UDP.
- Bi-directional converter between NMEA 2000 and NMEA 0183 protocols.
- Compatible with virtually all marine mobile applications and popular PC applications.
Data Recording and Cloud Service:
- Automatically records tracks with weather, depth, and other data to internal memory (up to 16256 points).
- Supports saving recorded data to GPX or CSV files through the internal web interface.
- Automatic uploading of recorded data to Cloud Service for remote access and sharing with family and friends.
RAW Protocol and Expedition Software Compatibility:
- Supports RAW protocol for transferring any NMEA 2000 messages (including proprietary) to applications like Expedition and CAN Log Viewer.
- Enables recording messages to a .CAN file and real-time monitoring with free CAN Log Viewer software.
- Open RAW protocol also supported in the USB Gateway.
Gateway Functionality:
- Duplicates or replaces broken instruments and complements obsolete instruments.

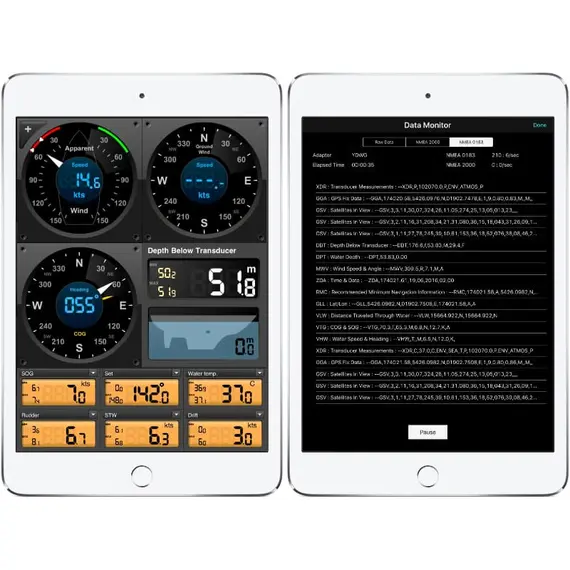

- Features built-in web gauges for viewing real-time vessel data and managing digital switching loads through a browser.
- Acts as a wireless NMEA 2000 extender, allowing the joining of two or more physical networks.
- Compatible with NMEA 0183 Wi-Fi Gateway for connecting NMEA 0183 devices to NMEA 2000.
- Facilitates communication between NMEA 2000 and PC applications through RAW protocol.
- Allows control of Raymarine SeaTalk NG autopilots and Yacht Devices autopilots from NMEA 0183.
- Compatible with NMEA 2000, J1939, and Volvo Penta EVC networks.
Network Compatibility and Connectors:
- Compatible with a wide range of equipment supporting NMEA 2000, including Raymarine SeaTalk NG, Simrad SimNet, and Furuno CAN networks.
- Supplied with different types of connectors to enable connection to networks of various manufacturers without the need for adapters.
Firmware Updates and Diagnostics:
- Supports firmware updates over Wi-Fi.
- Includes diagnostic software for Microsoft Windows, Mac OS X, and Linux.
- Incorporates an internal web server for diagnostics and configuration.
The NMEA 2000 Wi-Fi Gateway is a versatile and reliable solution for integrating marine network data into modern applications, offering a range of features for both convenience and functionality.
