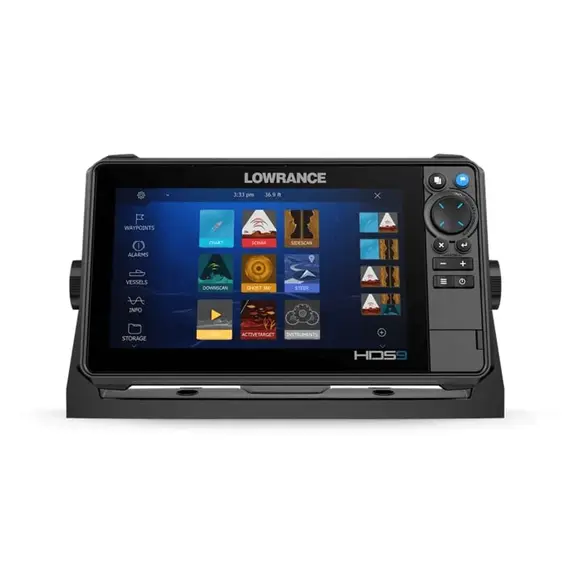

HDS PRO 9 without Transducer

5605337
1,709.10
List price: 1,899.00  -10%
In stock

High-resolution ActiveTarget 2 Live sonar

Detailed C-MAP charts with chart overlay option

Active Imaging HD for unmatched fish and structure images

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromItaly Model numberHDS PRO 9 Display size, inch9

Enhance your fishing experience with Lowrance's cutting-edge HDS PRO multifunction display. Utilize high-resolution ActiveTarget 2 Live sonar to monitor instantaneous piscine responses, concomitantly employing Active Imaging HD for precise localization of both fish and concealed habitats. Discover prime fishing locations with detailed C-MAP charts and enjoy complete control from bow to stern. The user-friendly touchscreen remains clear from all angles, even with polarisation-filtered glasses. From the upgraded touchscreen display to the enhanced Lowrance sonar, HDS PRO offers unparalleled underwater views, taking your fishing to the next level.

Take fishfinding clarity to new heights with Active Imaging HD sonar, providing unmatched fish and structure images through Lowrance CHIRP Sonar, SideScan, and DownScan Imaging. Easily spot fish-holding areas like rockpiles, standing timber, and drop-offs with improved target separation. Notably, DownScan offers photorealistic underwater structure images directly beneath the boat, while SideScan covers larger areas swiftly, identifying shallow regions. CHIRP ensures detailed resolution views of fish, structure, and the bottom.

Pay attention! This kit does not include a transducer. To fully utilize the features of the HDS PRO fishfinder, the 3-in-1 Active Imaging HD transducer is required (available separately).

High-resolution ActiveTarget 2 Live sonar enables real-time movement tracking, facilitating quick tactic adjustments. With plug-and-play support for two ActiveTarget systems, simultaneously display multiple views and enhance bait tracking.

Harness the power of intuitive C-MAP charts, facilitating easy navigation to prime fishing spots. Preloaded with C-MAP charts, HDS PRO allows upgrading to C-MAP DISCOVER or REVEAL options. Additionally, it's compatible with Navionics and other chart providers.

Enjoy added convenience with the new chart overlay option, displaying ActiveTarget Scout and Ghost 360 trolling motor modes directly on the chart screen.

Voltage, V DC
12
Operating temperature
-15°C to +55°C
Brand
Lowrance
EAN
9420064129775
Main features
Model number
HDS PRO 9
Display size, inch
9
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP Reveal, C-MAP Discover, C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Navionics Gold, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Output: No. Input: Composite video RCA – single channel via optional adaptor
Resolution, mm
1280 x 720
Brightness, nits
1200
Viewing angle, °
80
Power consumption, W
37.7
Ethernet, ports
2 x 100Mbit
NMEA2000, ports
1
NMEA0183, ports
1
GPS
GPS, GLONASS, WAAS, EGNOS, MSAS
Sonar
CHIRP / Fishfinder, DownScan, SideScan, LiveSight, ForwardScan
Radar
All HALO Radars
AIS
Yes
Card slot
2 x microSD
Autopilot operation
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3, Trolling Motor
Storage temperature
-20°C to +60°C
Waterproof
IPX7
Dimensions, mm
280 x 166.7 x 77.7
Dimensions in packaging
Weight, kg
3.0
Height, mm
250.0
Length, mm
300.0
Volume, cm3
18.75
Unit type
N
Additional Information
MPN
000-15997-001
Additional materials

Owner's Manual (HDS_PRO_Operator_Manual.pdf, 5,526 Kb) [Download]

Installation Instructions (HDS_PRO_9___10__IG.pdf, 2,479 Kb) [Download]
