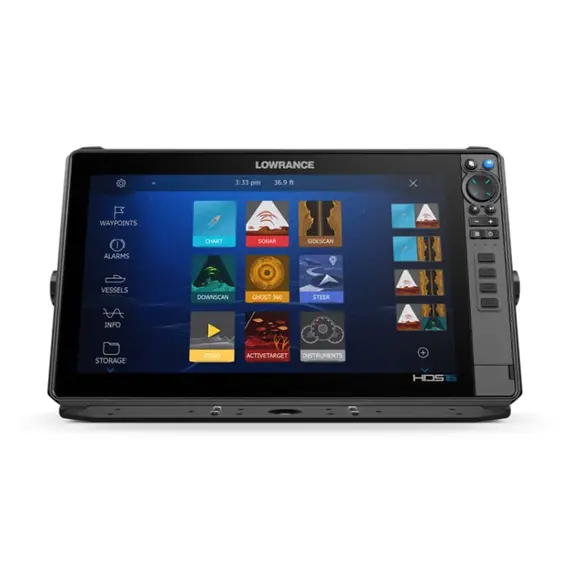

HDS PRO 16 without Transducer

5605340
4,274.10
List price: 4,749.00  -10%
In stock

Cutting-edge HDS PRO multifunction display by Lowrance

High-resolution ActiveTarget 2 Live sonar for real-time fish monitoring

Detailed C-MAP charts for optimal fishing locations

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromItaly Model numberHDS PRO 16 Display size, inch16

Elevate your angling experience with the cutting-edge HDS PRO multifunction display by Lowrance. Utilize high-resolution ActiveTarget 2 Live sonar for real-time fish monitoring and Active Imaging HD for precise fish and habitat localization. Detailed C-MAP charts help you discover optimal fishing locations, while the user-friendly touchscreen remains visible from all angles, even with polarisation-filtered glasses, offering unparalleled underwater views.

Unprecedented fishfinding clarity is achieved through Active Imaging HD sonar, featuring Lowrance CHIRP Sonar, SideScan, and DownScan Imaging. Identify fish-holding areas like rockpiles, standing timber, and drop-offs with improved target separation. DownScan provides photorealistic underwater structure images beneath the boat, while SideScan covers larger areas swiftly, including shallow regions. CHIRP ensures highly detailed resolution views of fish, structure, and the bottom.

Note: The kit does not include a transducer. The 3-in-1 Active Imaging HD transducer is required separately to utilize advanced HDS PRO fishfinder features fully.

High-resolution ActiveTarget 2 Live sonar allows real-time fish tracking, enabling swift tactic adjustments. Simultaneous integration of two ActiveTarget systems offers multiple views and enhanced bait tracking.

Leverage intuitive C-MAP charts for quick navigation to prime fishing spots, with pre-installed options to upgrade to C-MAP DISCOVER or REVEAL. Compatible with other chart providers like Navionics.

Enjoy added convenience with chart overlay, displaying ActiveTarget Scout and Ghost 360 trolling motor modes on the chart screen, streamlining your fishing operations.

Voltage, V DC
12
Operating temperature
-15°C to +55°C
Brand
Lowrance
EAN
9420064129867
Main features
Model number
HDS PRO 16
Display size, inch
16
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP Reveal, C-MAP Discover, C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Navionics Gold, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Output: No. Input: Composite video RCA – single channel via optional adaptor
Resolution, mm
1920 x 1080
Brightness, nits
1200
Viewing angle, °
80
Power consumption, W
53.3
Ethernet, ports
2 x 100Mbit
NMEA2000, ports
1
NMEA0183, ports
1
USB
1 x USB-A
GPS
GPS, GLONASS, WAAS, EGNOS, MSAS
Sonar
CHIRP / Fishfinder, DownScan, SideScan, LiveSight, ForwardScan
Radar
All HALO Radars
AIS
Yes
Card slot
2 x microSD
Autopilot operation
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3, Trolling Motor
Storage temperature
-20°C to +60°C
Waterproof
IPX7
Dimensions, mm
430.5 x 259.2 x 87.8
Dimensions in packaging
Weight, kg
3.0
Height, mm
250.0
Length, mm
300.0
Volume, cm3
18.75
Unit type
N
Additional Information
MPN
000-16006-001
Additional materials

Owner's Manual (HDS_PRO_Operator_Manual.pdf, 5,526 Kb) [Download]

Installation Instructions (HDS_PRO_12___16__IG.pdf, 2,603 Kb) [Download]
