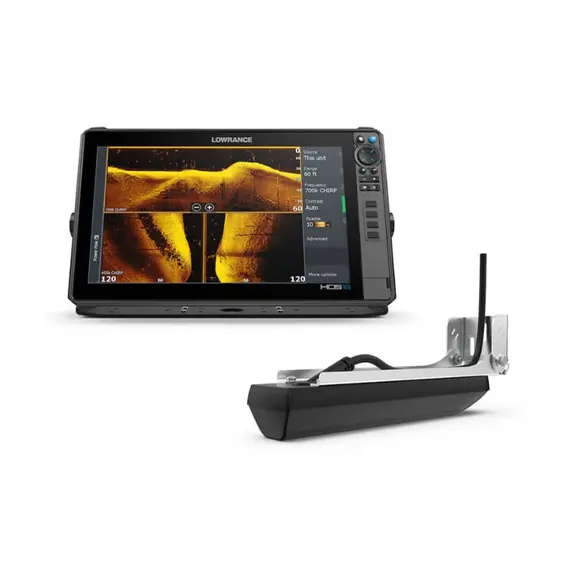

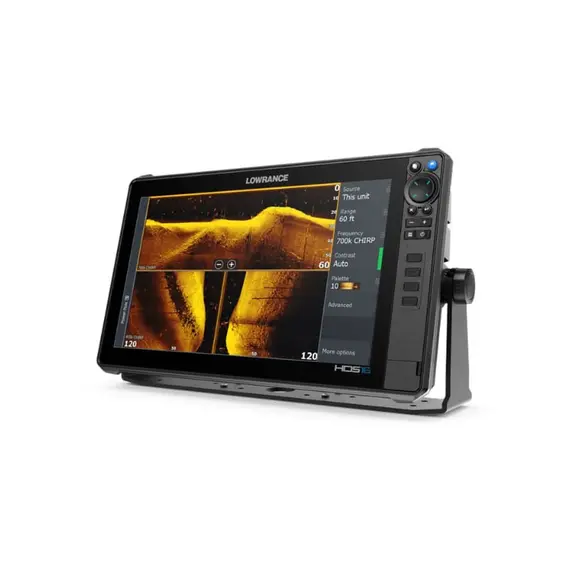

HDS PRO 16 with Active Imaging™ HD Transducer

5605344
4,454.10
List price: 4,949.00  -10%
In stock

Equipped with Active Imaging™ HD Transducer

High-resolution ActiveTarget 2 Live sonar with real-time piscine responses

Precise fish and habitat location with Active Imaging HD

Intuitive C-MAP charts for easy navigation and full control

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromItaly Model numberHDS PRO 16 Display size, inch16

Enhance your fishing experiences with Lowrance's advanced HDS PRO multifunction display. Utilize real-time piscine responses through high-resolution ActiveTarget 2 Live sonar and precisely locate fish and concealed habitats with Active Imaging HD. Detailed C-MAP charts aid in identifying prime fishing locations and maintaining full control. The user-friendly touchscreen remains clear from all angles, even with polarisation-filtered glasses, providing unparalleled underwater views.

Unrivaled fishfinding clarity is achieved with Active Imaging HD sonar, featuring Lowrance CHIRP Sonar, SideScan, and DownScan Imaging. Improved target separation helps identify fish-holding areas, such as rockpiles, standing timber, and drop-offs. DownScan offers photorealistic underwater structure images directly beneath the boat, while SideScan covers larger areas swiftly, including shallow regions. CHIRP ensures detailed resolution views of fish, structure, and the bottom.

Real-time movement tracking with high-resolution ActiveTarget 2 Live sonar enables quick tactic adjustments. Simultaneous plug-and-play support for two ActiveTarget systems allows multiple views and enhanced bait tracking.

Navigate effortlessly to prime fishing spots with intuitive C-MAP charts, preloaded with upgrade options to C-MAP DISCOVER or REVEAL. The HDS PRO fully competes with Navionics and other nautical chart providers.

Experience enhanced user convenience through the incorporation of chart overlay functionality, which seamlessly presents real-time data from ActiveTarget Scout and Ghost 360 trolling motor modes directly onto the chart screen. This integration optimizes and simplifies your fishing activities.

Voltage, V DC
12
Operating temperature
-15°C to +55°C
Brand
Lowrance
EAN
9420064129713
Main features
Model number
HDS PRO 16
Display size, inch
16
With transducer
Yes
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP Reveal, C-MAP Discover, C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Navionics Gold, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Output: No. Input: Composite video RCA – single channel via optional adaptor
Resolution, mm
1920 x 1080
Brightness, nits
1200
Viewing angle, °
80
Power consumption, W
53.3
Ethernet, ports
2 x 100Mbit
NMEA2000, ports
1
NMEA0183, ports
1
USB
1 x USB-A
GPS
GPS, GLONASS, WAAS, EGNOS, MSAS
Sonar
CHIRP / Fishfinder, DownScan, SideScan, LiveSight, ForwardScan
Radar
All HALO Radars
AIS
Yes
Card slot
2 x microSD
Autopilot operation
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3, Trolling Motor
Storage temperature
-20°C to +60°C
Waterproof
IPX7

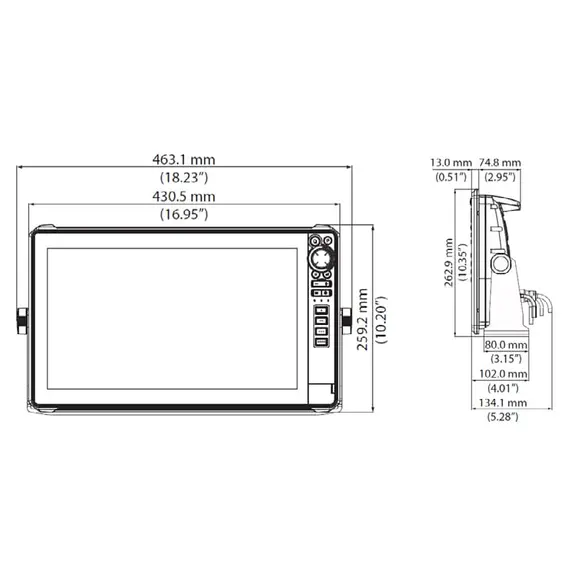

Dimensions, mm
430.5 x 259.2 x 87.8
Dimensions in packaging
Weight, kg
3.0
Height, mm
250.0
Length, mm
300.0
Volume, cm3
18.75
Unit type
N
Additional Information
MPN
000-15991-001
Additional materials

Owner's Manual (HDS_PRO_Operator_Manual.pdf, 5,526 Kb) [Download]

Installation Instructions (HDS_PRO_12___16__IG.pdf, 2,603 Kb) [Download]
