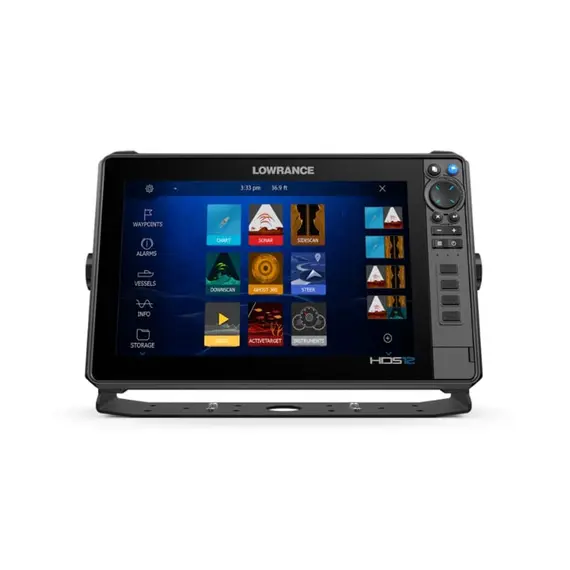

HDS PRO 12 without Transducer

5605339
2,676.65
In stock

High-resolution ActiveTarget 2 Live sonar

Active Imaging HD with CHIRP Sonar

Intuitive C-MAP charts with chart overlay

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromCroatia Model numberHDS PRO 12 Display size, inch12

Enhance your angling experience with Lowrance's state-of-the-art HDS PRO multifunction display. Utilize high-resolution ActiveTarget 2 Live sonar for real-time fish monitoring and Active Imaging HD for precise fish and habitat localization. Discover optimal fishing locations with detailed C-MAP charts and maintain full control with the user-friendly touchscreen, visible from all angles, even with polarisation-filtered glasses. The upgraded display and advanced sonar provide unparalleled underwater views, elevating your fishing endeavors.

Achieve unprecedented fishfinding clarity through Active Imaging HD sonar, featuring Lowrance CHIRP Sonar, SideScan, and DownScan Imaging. Identify fish-holding areas like rockpiles, standing timber, and drop-offs with improved target separation. DownScan offers photorealistic underwater structure images beneath the boat, while SideScan covers larger areas swiftly, including shallow regions. CHIRP ensures highly detailed resolution views of fish, structure, and the bottom.

Note: The kit does not include a transducer. The 3-in-1 Active Imaging HD transducer is required separately to utilize advanced HDS PRO fishfinder features fully.

High-resolution ActiveTarget 2 Live sonar allows real-time fish tracking for swift tactic adjustments. Two ActiveTarget systems can be integrated simultaneously for multiple views and enhanced bait tracking.

Leverage intuitive C-MAP charts for quick navigation to prime fishing spots. Pre-installed C-MAP charts with options to upgrade to C-MAP DISCOVER or REVEAL. Compatible with other chart providers like Navionics.

Enjoy added convenience with chart overlay, displaying ActiveTarget Scout and Ghost 360 trolling motor modes on the chart screen, streamlining your fishing operations.

Brand
Lowrance
Voltage, V DC
12
EAN
9420064129836
Operating temperature
-15°C to +55°C
Main features
Model number
HDS PRO 12
Display size, inch
12
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP Reveal, C-MAP Discover, C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Navionics Gold, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Output: No. Input: Composite video RCA – single channel via optional adaptor
Resolution, mm
1280 x 800
Brightness, nits
1200
Viewing angle, °
80
Power consumption, W
46.8
Ethernet, ports
2 x 100Mbit
NMEA2000, ports
1
NMEA0183, ports
1
USB
1 x USB-A
GPS
GPS, GLONASS, WAAS, EGNOS, MSAS
Sonar
CHIRP / Fishfinder, DownScan, SideScan, LiveSight, ForwardScan
Radar
All HALO Radars
AIS
Yes
Card slot
2 x microSD
Autopilot operation
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3, Trolling Motor
Storage temperature
-20°C to +60°C
Waterproof
IPX7
Dimensions, mm
347.5 x 225.5 x 82.9
Dimensions in packaging
Weight, kg
3
Additional Information
MPN
000-16003-001
Additional materials

Owner's Manual (HDS_PRO_Operator_Manual.pdf, 5,526 Kb) [Download]

Installation Instructions (HDS_PRO_12___16__IG.pdf, 2,603 Kb) [Download]
