HDS PRO 10 without Transducer

5605338
2,209.15
In stock

HDS PRO multifunction display with user-friendly touchscreen

Active Imaging HD sonar for exceptional fish and structure images

High-resolution ActiveTarget 2 Live sonar for real-time fish tracking

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromCroatia Model numberHDS PRO 10 Display size, inch10

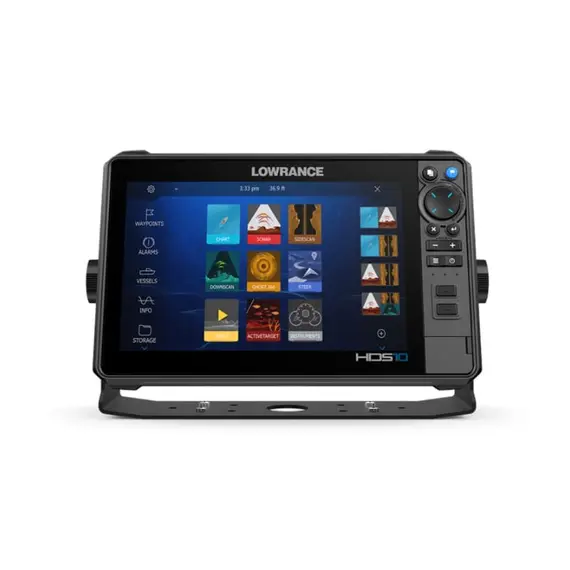

Optimize your angling experience with the state-of-the-art HDS PRO multifunction display from Lowrance. Employ the high-resolution ActiveTarget 2 Live sonar for real-time monitoring of fish responses while utilizing Active Imaging HD for precisely localizing fish and hidden habitats. Uncover prime fishing locations with detailed C-MAP charts and maintain full system control from bow to stern. The user-friendly touchscreen remains easily visible from all angles, even when using polarisation-filtered glasses. The upgraded touchscreen display and advanced Lowrance sonar deliver unparalleled underwater views, elevating your fishing endeavors.

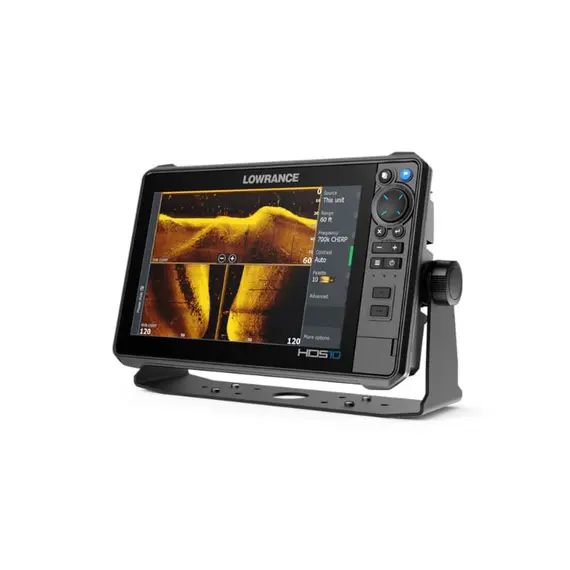

Achieve unprecedented fishfinding clarity with Active Imaging HD sonar, which offers exceptional fish and structure images through Lowrance CHIRP Sonar, SideScan, and DownScan Imaging. Quickly identify fish-holding areas like rockpiles, standing timber, and drop-offs with improved target separation. DownScan provides photorealistic underwater structure images directly beneath the boat, while SideScan covers larger areas swiftly, making shallow regions recognizable. CHIRP ensures highly detailed resolution views of fish, structure, and the bottom.

Please be aware that this kit does not include a transducer. To fully utilize the advanced features of the HDS PRO fishfinder, the 3-in-1 Active Imaging HD transducer is required and available separately.

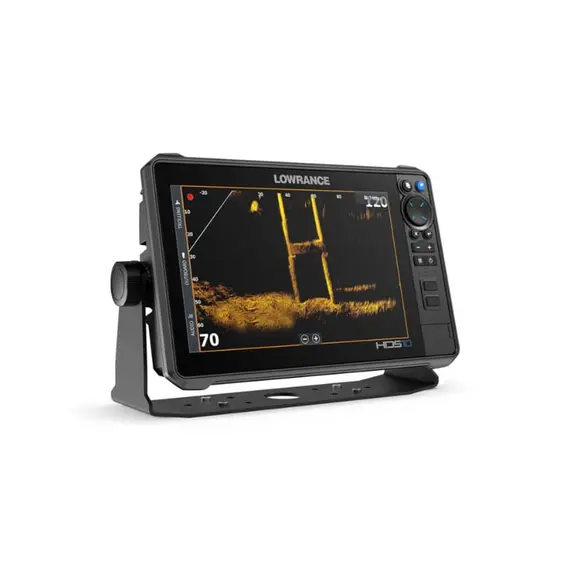

The high-resolution ActiveTarget 2 Live sonar allows for real-time tracking of fish movements, enabling swift adjustments to tactics. With support for plug-and-play integration of two ActiveTarget systems, users can simultaneously display multiple views and improve bait tracking capabilities.

Leverage the power of intuitive C-MAP charts to navigate to prime fishing spots quickly. The HDS PRO is equipped with pre-installed C-MAP charts and facilitates seamless enhancements to C-MAP DISCOVER or REVEAL alternatives through upgrade functionalities. Moreover, it is compatible with other chart providers, such as Navionics.

Enjoy added convenience with the new chart overlay option, which displays ActiveTarget Scout and Ghost 360 trolling motor modes directly on the chart screen, streamlining your fishing operations.

Brand
Lowrance
Voltage, V DC
12
EAN
9420064129805
Operating temperature
-15°C to +55°C
Main features
Model number
HDS PRO 10
Display size, inch
10
With transducer
No
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP Reveal, C-MAP Discover, C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Navionics Gold, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Output: No. Input: Composite video RCA – single channel via optional adaptor
Resolution, mm
1280 x 720
Brightness, nits
1200
Viewing angle, °
80
Power consumption, W
37.7
Ethernet, ports
2 x 100Mbit
NMEA2000, ports
1
NMEA0183, ports
1
GPS
GPS, GLONASS, WAAS, EGNOS, MSAS
Sonar
CHIRP / Fishfinder, DownScan, SideScan, LiveSight, ForwardScan
Radar
All HALO Radars
AIS
Yes
Card slot
2 x microSD
Autopilot operation
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3, Trolling Motor
Storage temperature
-20°C to +60°C
Waterproof
IPX7

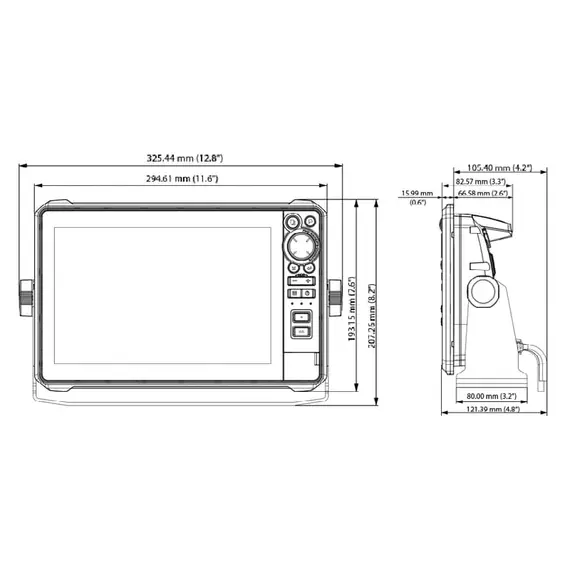

Dimensions, mm
294.61 x 193.15 x 82.57
Dimensions in packaging
Weight, kg
3
Additional Information
MPN
000-16000-001
Additional materials

Owner's Manual (HDS_PRO_Operator_Manual.pdf, 5,526 Kb) [Download]

Installation Instructions (HDS_PRO_9___10__IG.pdf, 2,479 Kb) [Download]
