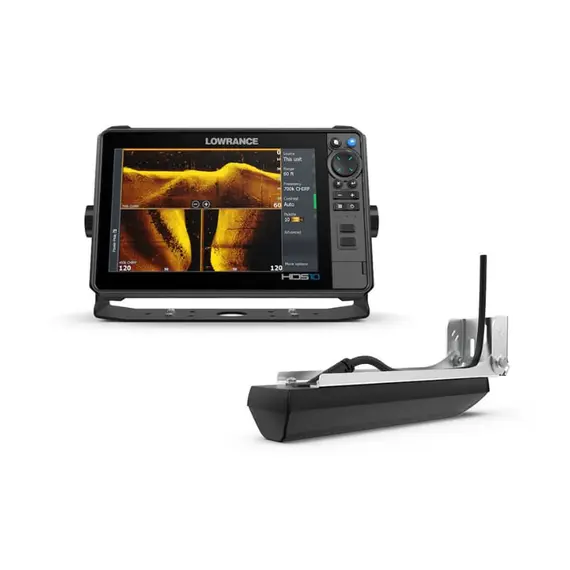

HDS PRO 10 with Active Imaging™ HD Transducer

5605342
2,379.15
In stock

Equipped with Active Imaging™ HD Transducer

Cutting-edge HDS PRO multifunction display

High-resolution ActiveTarget 2 Live sonar

Detailed C-MAP charts for prime fishing locations

FNI
  • List of product variants
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromCroatia Model numberHDS PRO 10 Display size, inch10

Enhance your fishing encounters with Lowrance's cutting-edge HDS PRO multifunction display. Experience real-time piscine responses via high-resolution ActiveTarget 2 Live sonar while precisely locating fish and concealed habitats with Active Imaging HD. Explore detailed C-MAP charts for identifying prime fishing locations and maintaining complete control. The user-friendly touchscreen remains clear from all angles, even with polarisation-filtered glasses, providing unparalleled underwater views.

Unrivaled fishfinding clarity awaits with Active Imaging HD sonar featuring Lowrance CHIRP Sonar, SideScan, and DownScan Imaging. Improved target separation helps identify fish-holding areas like rockpiles, standing timber, and drop-offs. DownScan offers photorealistic underwater structure images directly beneath the boat, while SideScan covers larger areas swiftly, including shallow regions. CHIRP ensures detailed resolution views of fish, structure, and the bottom.

Real-time movement tracking with high-resolution ActiveTarget 2 Live sonar allows quick tactic adjustments. Simultaneous multiple views and enhanced bait tracking are supported with plug-and-play for two ActiveTarget systems.

Harness intuitive C-MAP charts for easy navigation to prime fishing spots, preloaded with C-MAP charts and options to upgrade to C-MAP DISCOVER or REVEAL. Also compatible with Navionics and other chart providers.

Enjoy added convenience with chart overlay, displaying ActiveTarget Scout and Ghost 360 trolling motor modes directly on the chart screen.

Brand
Lowrance
Voltage, V DC
12
EAN
9420064129652
Operating temperature
-15°C to +55°C
Main features
Model number
HDS PRO 10
Display size, inch
10
With transducer
Yes
NMEA0183
Yes
Bluetooth
Yes
Sonar module
Yes
Sea Charts
C-MAP Reveal, C-MAP Discover, C-MAP MAX N, C-MAP MAX N+, C-MAP Genesis, C-MAP Precision Contour HD, Navionics Gold, Naviconics+, Navionics Platinum+, Insight Pro and HD
Radar capable
Yes
Operating mode
Touch screen & keys
NMEA2000
Yes
WiFi
Yes
Ethernet / Network
Yes
Nautical chart support
Yes
Tablet control
Yes
Technical data
Video/camera
Output: No. Input: Composite video RCA – single channel via optional adaptor
Resolution, mm
1280 x 720
Brightness, nits
1200
Viewing angle, °
80
Power consumption, W
37.7
Ethernet, ports
2 x 100Mbit
NMEA2000, ports
1
NMEA0183, ports
1
GPS
GPS, GLONASS, WAAS, EGNOS, MSAS
Sonar
CHIRP / Fishfinder, DownScan, SideScan, LiveSight, ForwardScan
Radar
All HALO Radars
AIS
Yes
Card slot
2 x microSD
Autopilot operation
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3, Trolling Motor
Storage temperature
-20°C to +60°C
Waterproof
IPX7
Dimensions, mm
294.61 x 193.15 x 82.57
Dimensions in packaging
Weight, kg
1.66
Additional Information
MPN
000-15985-001
Additional materials

Owner's Manual (HDS_PRO_Operator_Manual.pdf, 5,526 Kb) [Download]

Installation Instructions (HDS_PRO_9___10__IG.pdf, 2,479 Kb) [Download]
