Eagle 9 with TripleShot™ HD Transducer

5605371
594.15
In stock

Swift setup with Autotuning Sonar and TripleShot™ HD Transducer

Enhanced underwater views with SideScan and DownScan Imaging™

Clear visibility from all angles with upgraded IPS screen

FNI
BrandLowrance Shipping fromCroatia Display size, inch9
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Brand
Lowrance
MPN
000-16127-001
Voltage, V DC
10.8-17
Weight, kg
0.9
Operating temperature
-15 °C to +55 °C
Main features
Display size, inch
9
With transducer
Yes
NMEA0183
No
Bluetooth
No
Sonar module
Yes
Installation height, mm
141
Installation width, mm
251
Sea Charts
C-MAP® DISCOVER™, C-MAP® Genesis Live
Radar capable
No
Operating mode
Keys
NMEA2000
No
WiFi
No
Ethernet / Network
No
Nautical chart support
Yes
Technical data
Resolution, mm
1024 x 600
Brightness, nits
1000
Viewing angle, °
85
Sonar
CHIRP / Fishfinder, DownScan, SideScan
Card slot
1 x microSD
Storage temperature
-20 °C to +60 °C
Waterproof
IPX7
Dimensions, mm
287x263x90
Find similar

Eagle® is engineered to simplify fishing for maximum enjoyment. Easy to use and quick to install, this model features the newly designed TripleShot™ HD Transducer with FishReveal technology and autotuning for swift setup. The enhanced IPS screen ensures higher resolution and visibility from all angles. Pre-loaded with a worldwide basemap chart, it also offers the option to upgrade to CMAP® DISCOVER™.

Benefiting from enhanced Lowrance® sonar technology, Eagle® delivers exceptional fishfinding capabilities. The TripleShot™ HD Transducer provides underwater views to the side and below the boat, combining wide-angle high CHIRP sonar with high-resolution images from SideScan and DownScan Imaging™.

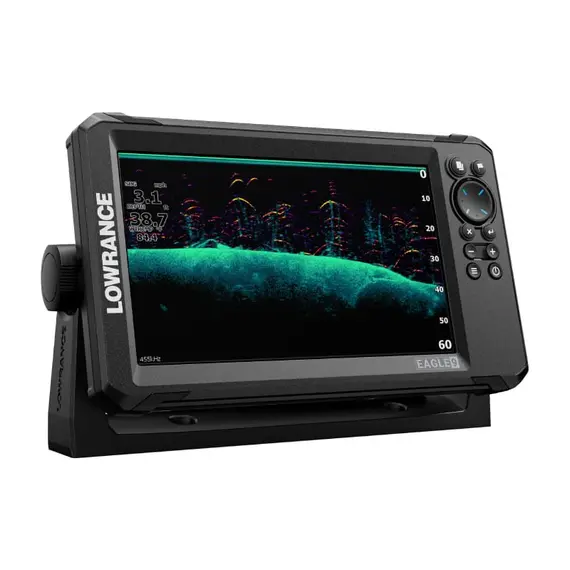

CHIRP sonar delivers detailed views of individual fish targets, even in challenging conditions, while DownScan Imaging™ provides clear images of underwater structures.

SideScan extends visibility up to 600ft on either side of the vessel, facilitating efficient exploration of fishing grounds.

FishReveal mode combines DownScan with CHIRP for superior target separation and identification. Autotuning sonar ensures optimal settings for efficient operation.

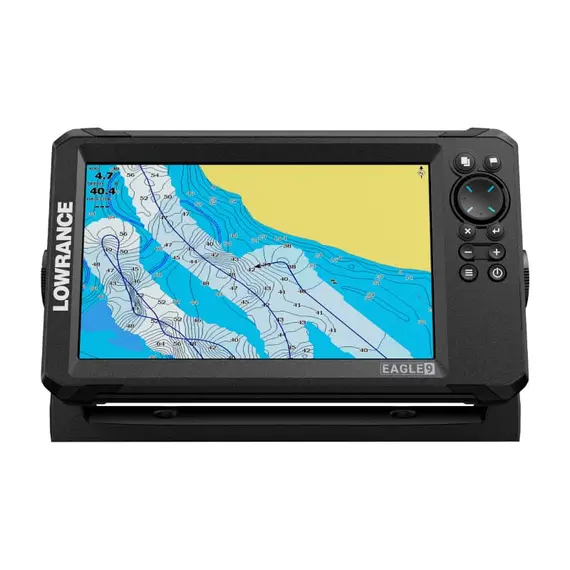

With a pre-loaded worldwide basemap and the flexibility to upgrade charting providers, Eagle® offers comprehensive navigation options. Custom ½-foot contour maps can be created in real-time for precise insight into local waters.

The IPS screen ensures clear visibility even with polarized sunglasses in direct sunlight, while the improved twist-lock connector system facilitates easy installation and removal.

Key Features:

  • Enhanced TripleShot™ HD Transducer with Autotuning sonar
  • Worldwide Basemap
  • IPS screen for clear visibility from all angles, even with polarized glasses
  • Reliable twist-lock connector system for easy installation
  • SD card slot for software updates and additional charting features
  • FishReveal™ mode for enhanced fish detection
  • Imaging color palettes for improved contrast and viewability
Additional materials

Owner’s Manual (Eagle_OM_EN.pdf, 6,797 Kb) [Download]

Installation Manual (EAGLE-7-9_IG_EN.pdf, 2,232 Kb) [Download]

Mounting Template (EAGLE-7-9_MT.pdf, 1,061 Kb) [Download]

Quick Start Guide (EAGLE-5-7-9_QG_EN.pdf, 1,344 Kb) [Download]
