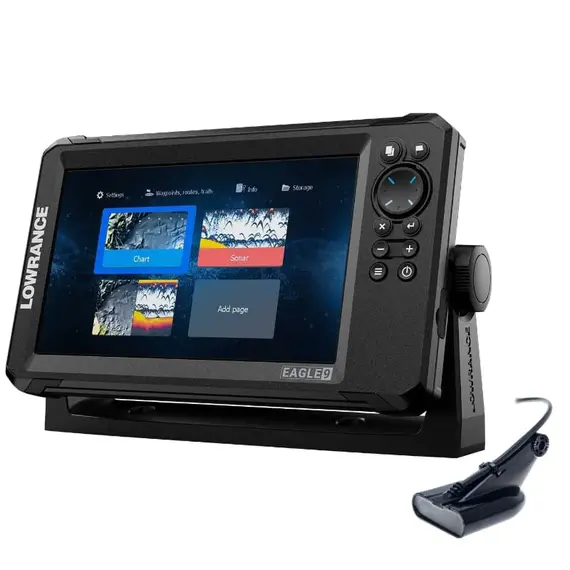

Eagle 9 with 50/200 HDI Transducer

5605371
551.65
In stock

Effortless setup with Autotuning Sonar and FishReveal™ technology

Superior underwater views with 50/200 HDI transducer

Clear visibility from all angles with upgraded IPS screen

FNI
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
BrandLowrance Shipping fromCroatia Display size, inch9

Eagle® is engineered to simplify fishing for maximum enjoyment. With user-friendly features and easy installation, the Eagle 5 HDI incorporates Lowrance CHIRP and DownScan Imaging with FishReveal™ technology and autotuning for swift setup. The new IPS screen ensures higher resolution and visibility from all angles. It comes pre-loaded with a worldwide basemap chart and offers the option to upgrade to CMAP® DISCOVER™.

Benefiting from enhanced Lowrance® sonar technology, Eagle® delivers outstanding fishfinding capabilities. The 50/200 HDI transducer is perfect for anglers seeking superior underwater views, even in deeper waters, combining powerful CHIRP sonar with high-resolution images from DownScan Imaging™.

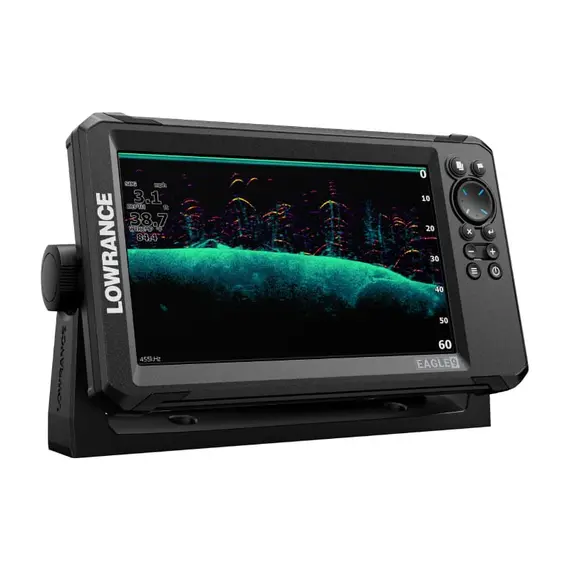

CHIRP sonar provides detailed views of individual fish targets, even in challenging conditions, while DownScan Imaging™ offers precise identification of underwater structures.

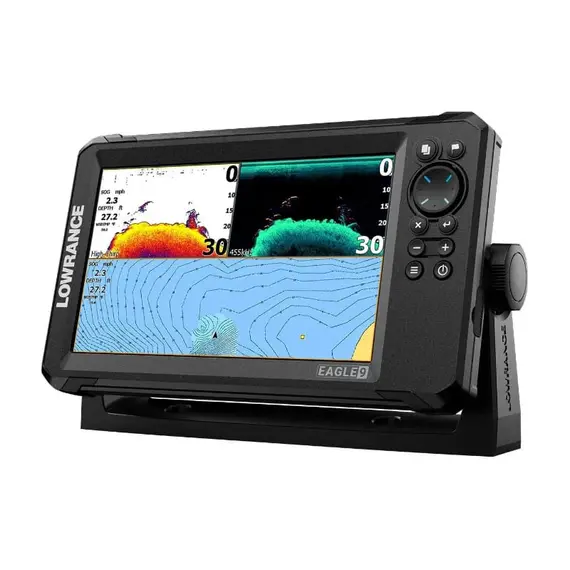

FishReveal mode combines DownScan with CHIRP for superior target separation and identification, removing guesswork from fish detection. Autotuning sonar ensures optimal settings from the start, saving time and effort.

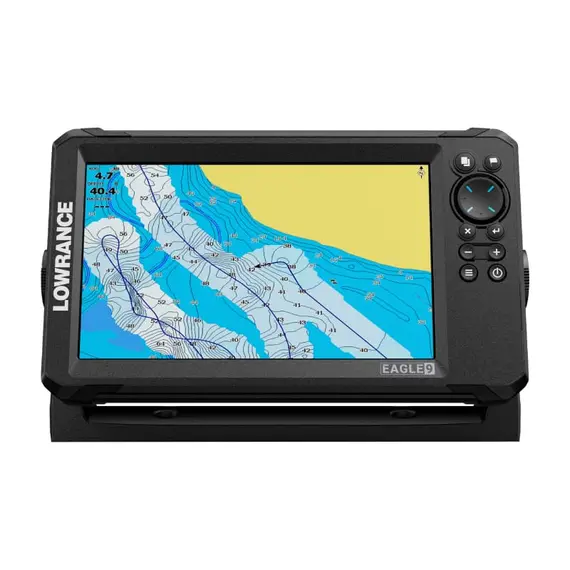

With a pre-loaded worldwide basemap and the option to upgrade charting providers, Eagle® offers comprehensive navigation options. Custom ½-foot contour maps can be created in real-time for precise insight into local waters.

The IPS screen ensures clear visibility even with polarized sunglasses in direct sunlight, while the improved twist-lock connector system facilitates easy installation and removal.

Key Features:

  • 50/200 HDI LOW/HIGH Transducer with Autotuning sonar
  • Worldwide Basemap
  • IPS screen for clear visibility from all angles, even with polarized glasses

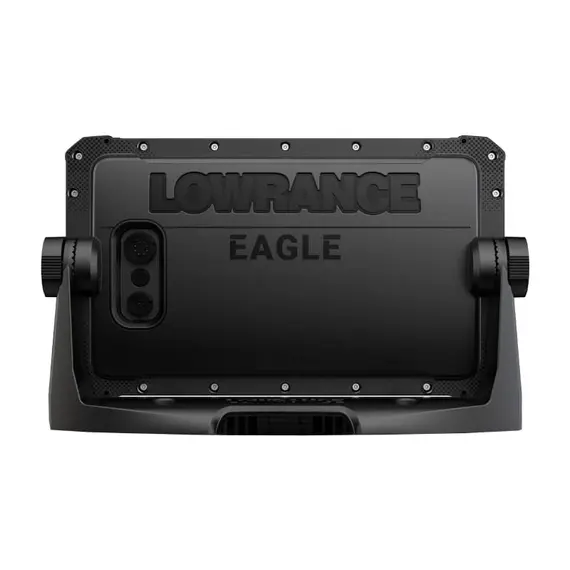

  • Reliable twist-lock connector system for easy installation
  • SD card slot for software updates and additional charting features
  • FishReveal™ mode for enhanced fish detection
  • Imaging color palettes for improved contrast and viewability
Brand
Lowrance
Voltage, V DC
10.8-17
Operating temperature
-15 °C to +55 °C
Main features
Display size, inch
9
With transducer
Yes
NMEA0183
No
Bluetooth
No
Sonar module
Yes

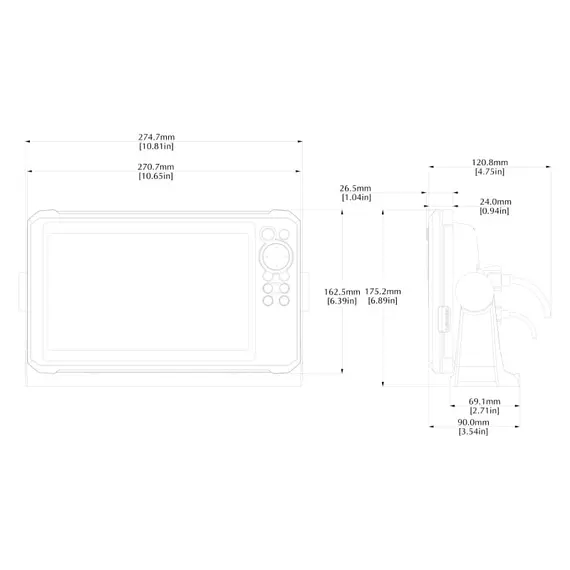

Installation height, mm
141
Installation width, mm
251
Sea Charts
C-MAP® DISCOVER™, C-MAP® Genesis Live
Radar capable
No
Operating mode
Keys
NMEA2000
No
WiFi
No
Ethernet / Network
No
Nautical chart support
Yes
Technical data
Resolution, mm
1024 x 600
Brightness, nits
1000
Viewing angle, °
85
Sonar
CHIRP / Fishfinder, DownScan
Card slot
1 x microSD
Storage temperature
-20 °C to +60 °C
Waterproof
IPX7
Dimensions, mm
287x263x90
Dimensions in packaging
Weight, kg
0.9
Additional Information
MPN
000-16124-001
Additional materials

Owner’s Manual (Eagle_OM_EN.pdf, 6,797 Kb) [Download]

Installation Manual (EAGLE-7-9_IG_EN.pdf, 2,232 Kb) [Download]

Mounting Template (EAGLE-7-9_MT.pdf, 1,061 Kb) [Download]

Quick Start Guide (EAGLE-5-7-9_QG_EN.pdf, 1,344 Kb) [Download]
