GPS and GLONASS high-performance antenna with full support for the SBAS system (WAAS, EGNOS, MSAS). The SBAS (Satellite Based Augmentation System) represents a pioneering navigation enhancement that provides additional data to GPS and GLONASS receivers, thereby correcting positional inaccuracies.
The antenna features a built-in 50-channel positioning processor, ensuring a rapid Time to First Fix (TTFF) of under one second. Designed for maritime use, the data acquisition engine facilitates multiple time/frequency searches for swift satellite acquisition. Revolutionary design coupled with advanced receiver technology effectively alleviates interference and signal distortions, ensuring exceptional navigation precision even when faced with challenging weather conditions.

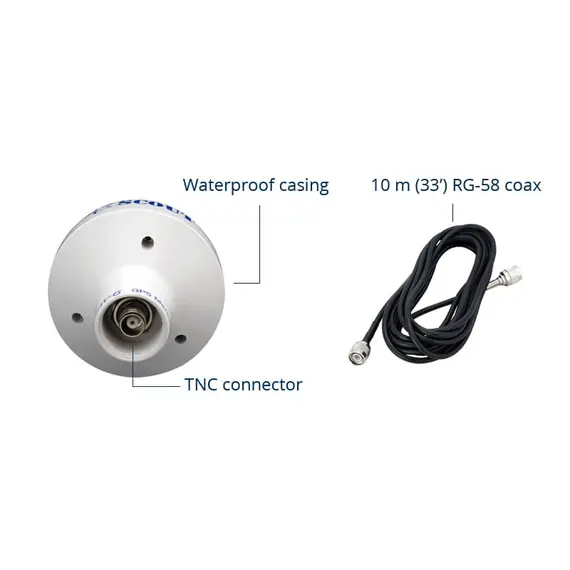

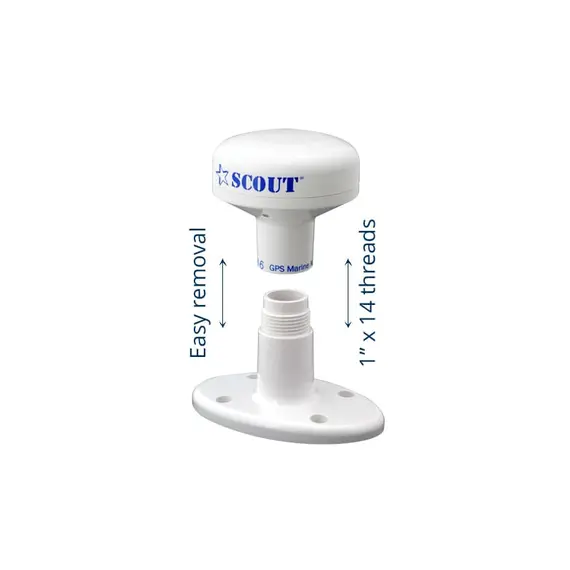

Boasting a 24 dB low noise amplifier, the antenna is powered via the coax cable (2.5 to 5.5 Vdc) from the instrument. The NAV-6 package includes a deck mount, mounting set, and a 10 m (33') RG-58 cable with TNC male connectors. Its standard 1" x 14 threads ensure easy pole mounting.
