Centaur Charger 24/16 (3)

CCH024016000
407.70
453.00
You save: 45.30 €
In stock
Uflex s.r.l.
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Battery capacity, Ah45 - 150 BrandVictron Energy Shipping fromCroatia
AC-connection
screw-clamp 4 mm² (AWG 6)
Battery capacity, Ah
45 - 150
Battery-connection
M6 studs
Charge characteristic
IUoU (Three stage charging)
Charge voltage ‘absorption’,V (DC)
14,3 / 28,5
Charge voltage ‘float’,V (DC)
13,5 / 27,0
Charging Current, A
16
Depth, mm
110
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
90 - 265
Input voltage, V (DC)
90 – 400
Power factor
1
Protection
Output short circuit, over temperature
Protection category, IP
IP 20
Temperature sensor
Yes
Width, mm
215
Brand
Victron Energy
MPN
CCH024016000
Weight, kg
3,8
EAN
8719076021544
Operating temperature
-20 to 60°C
Main characteristics
Height, mm
355
Find similar

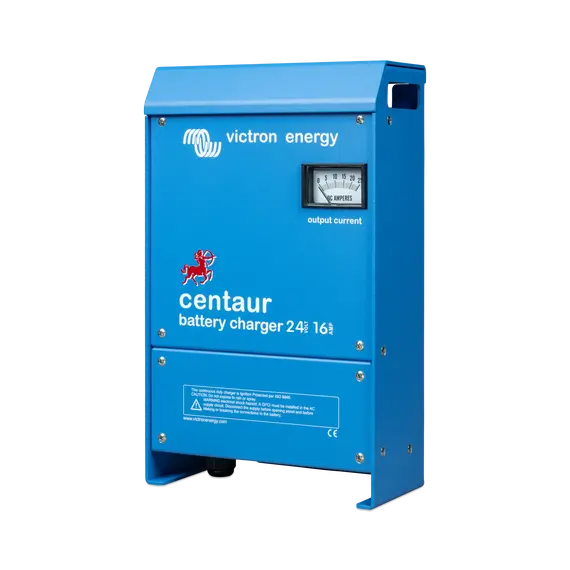

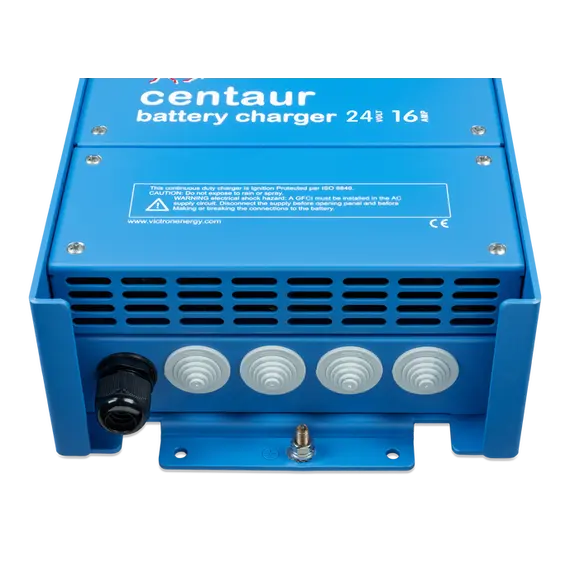

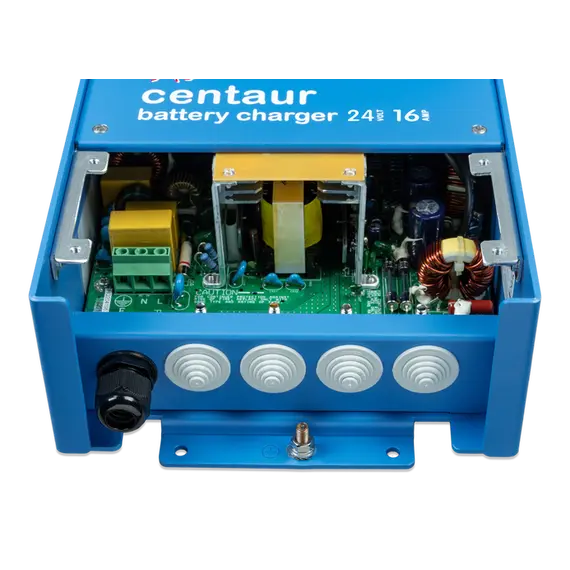

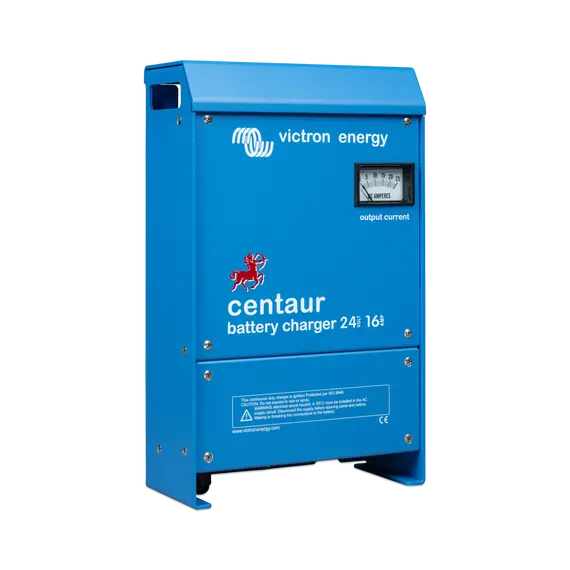

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.

The range spans 12V and 24V models from 16A through to 100A.

Additional materials

Data Sheet (Datasheet-Centaur-Charger-EN.pdf, 198 Kb) [Download]
