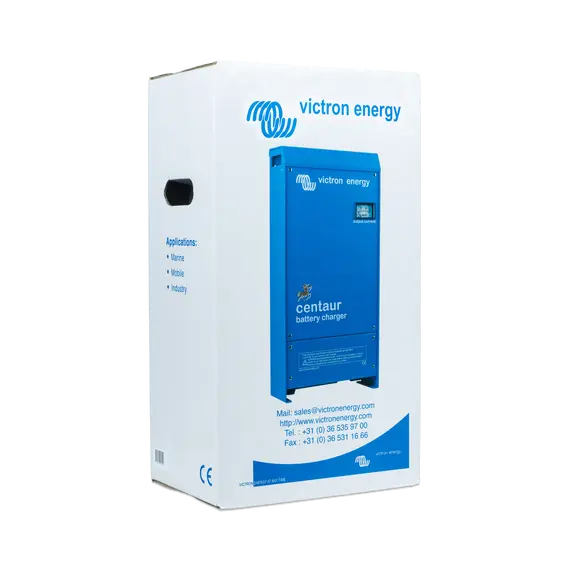

Centaur Charger 12/100 (3)

CCH012100000
991.80
1,102.00
You save: 110.20 €
In stock
Uflex s.r.l.
topRik
Nautical marketplace, yacht charter agency, equipment supplier, new yachts sales, brok...
+37253060890
Ask a question
Contact

English / Hrvatski / Русский

Messengers: All languages

Taxes

The price provided is NET-price, meaning shipment and VAT are not included. Additional duties and tax payments might be required. Taxes and delivery costs are calculated after ordering the goods and depend on the type of client and delivery address.

Delivery
Returns
Battery capacity, Ah400 - 1000 BrandVictron Energy Shipping fromCroatia
AC-connection
screw-clamp 4 mm² (AWG 6)
Battery capacity, Ah
400 - 1000
Battery-connection
M8 studs
Charge characteristic
IUoU (Three stage charging)
Charge voltage ‘absorption’,V (DC)
14,3 / 28,5
Charge voltage ‘float’,V (DC)
13,5 / 27,0
Charging Current, A
100
Depth, mm
130
Device type
Charger
Frequency, Hz
45-65
Humidity (non condensing)
max 95%
Input voltage, V (AC)
90 - 265
Input voltage, V (DC)
90 – 400
Power factor
1
Protection
Output short circuit, over temperature
Protection category, IP
IP 20
Temperature sensor
Yes
Width, mm
255
Brand
Victron Energy
MPN
CCH012100000
Weight, kg
12
EAN
8719076021537
Operating temperature
-20 to 60°C
Main characteristics
Height, mm
505
Find similar

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.

Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.

The range spans 12V and 24V models from 16A through to 100A.

Additional materials

Data Sheet (Datasheet-Centaur-Charger-EN.pdf, 198 Kb) [Download]
